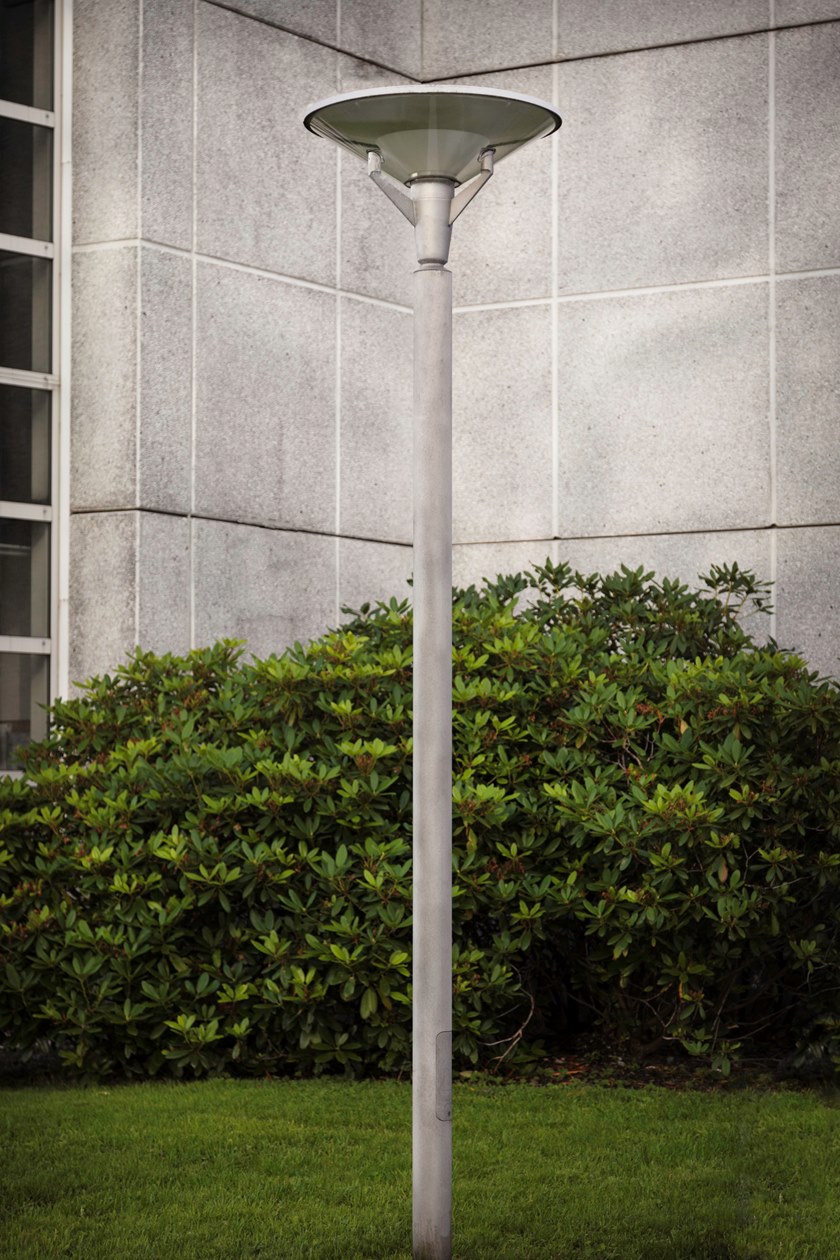

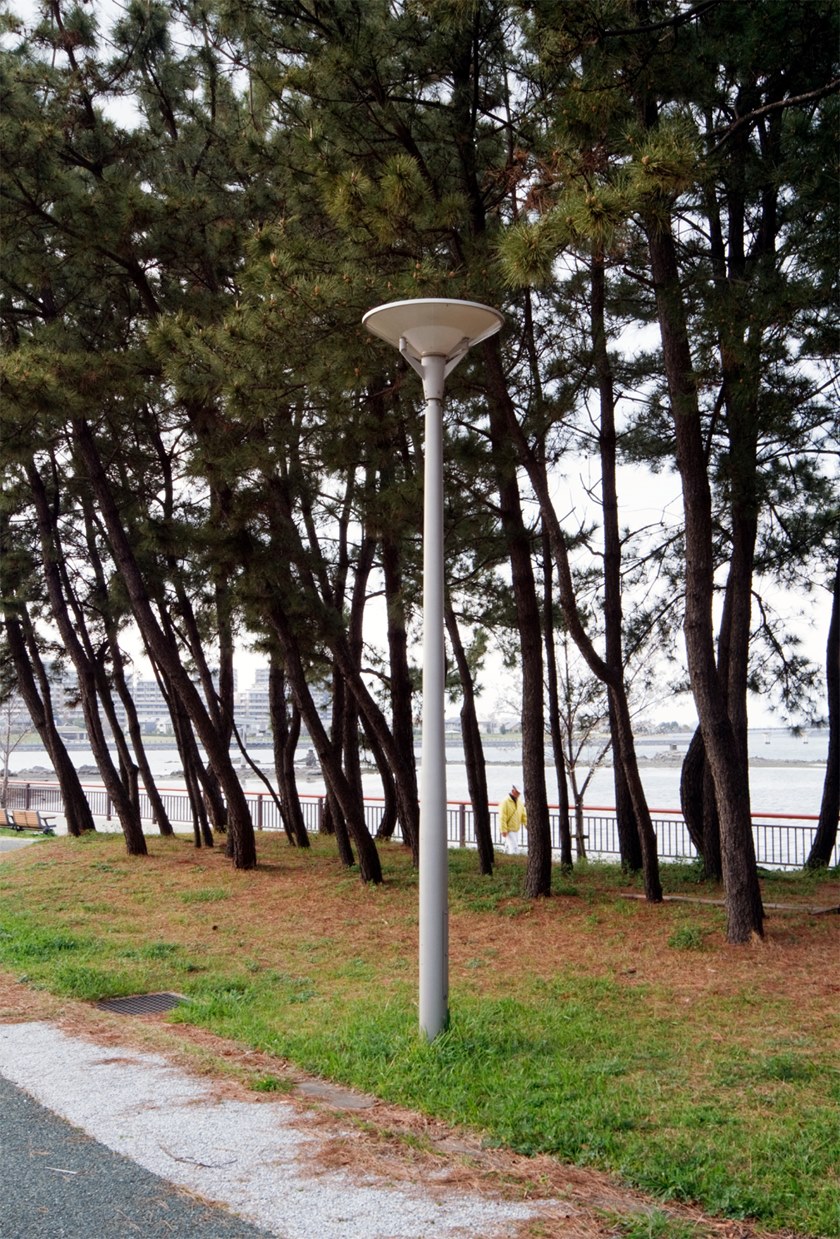

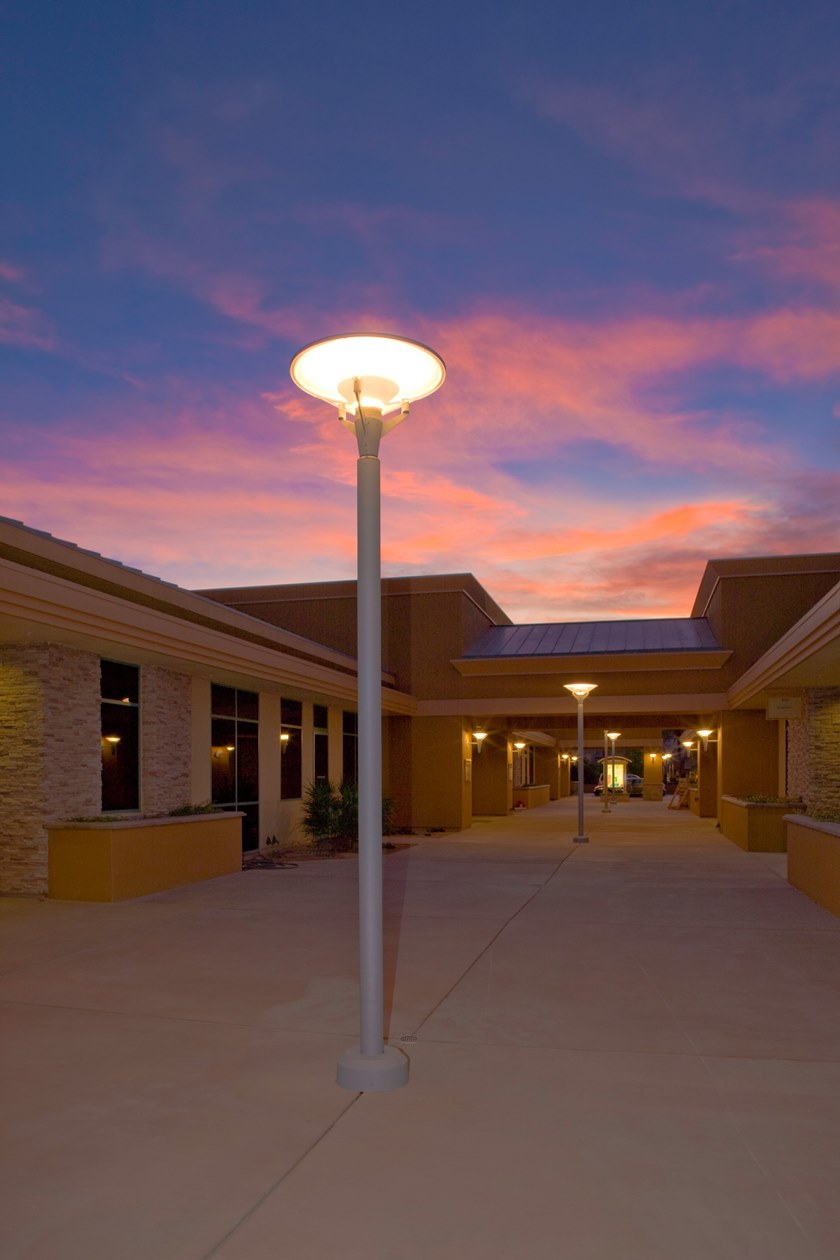

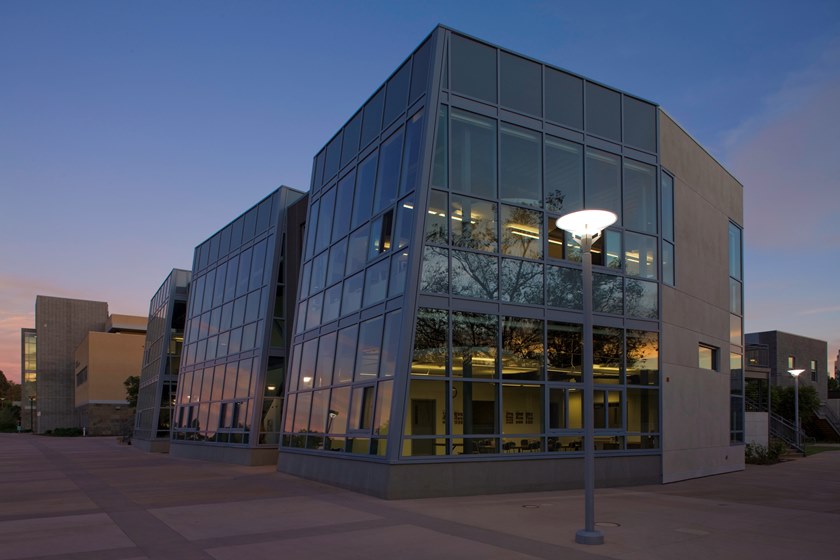

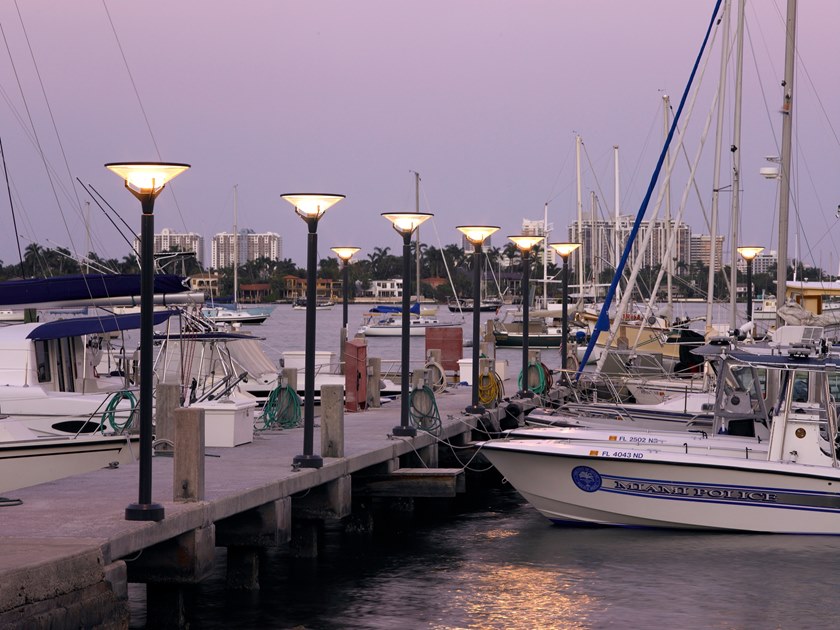

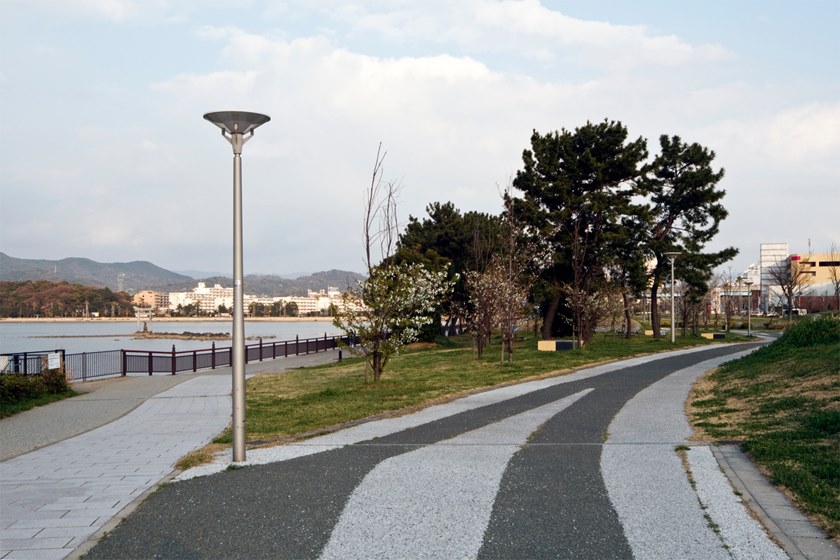

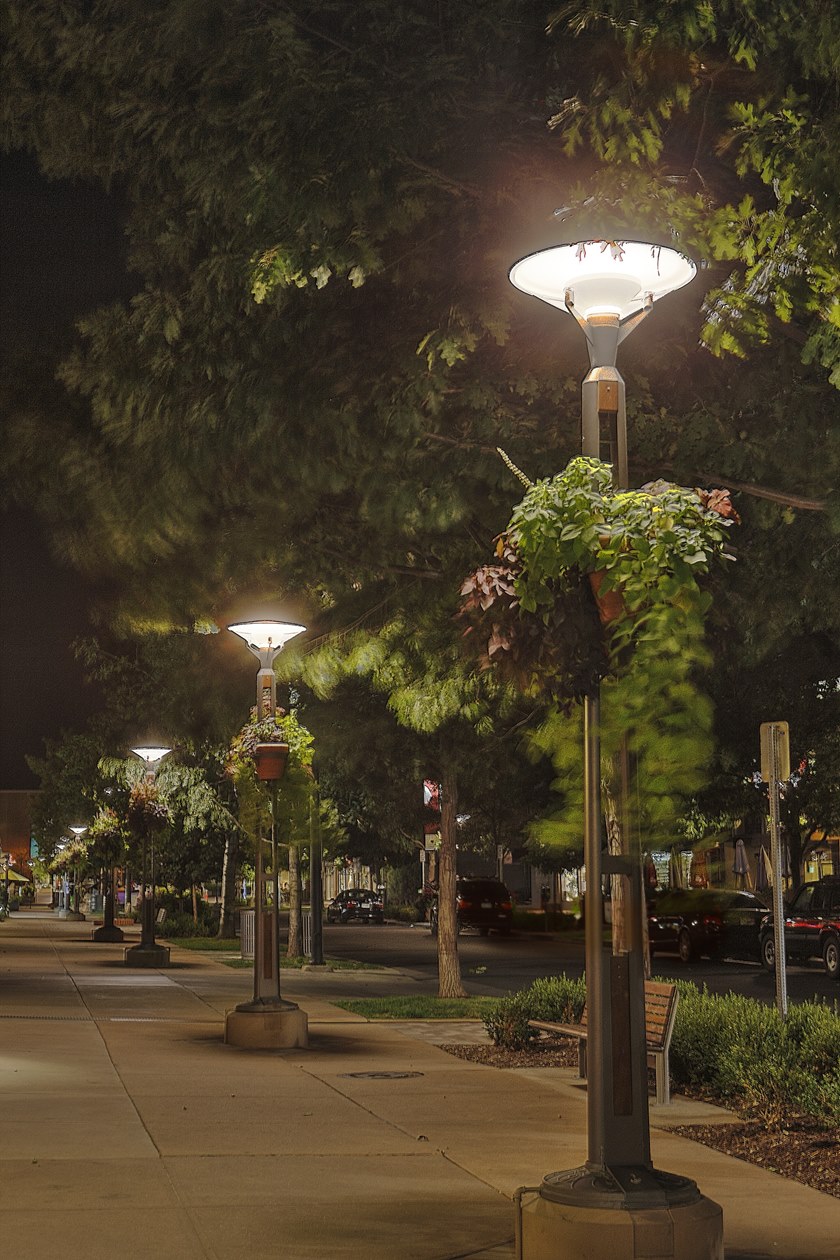

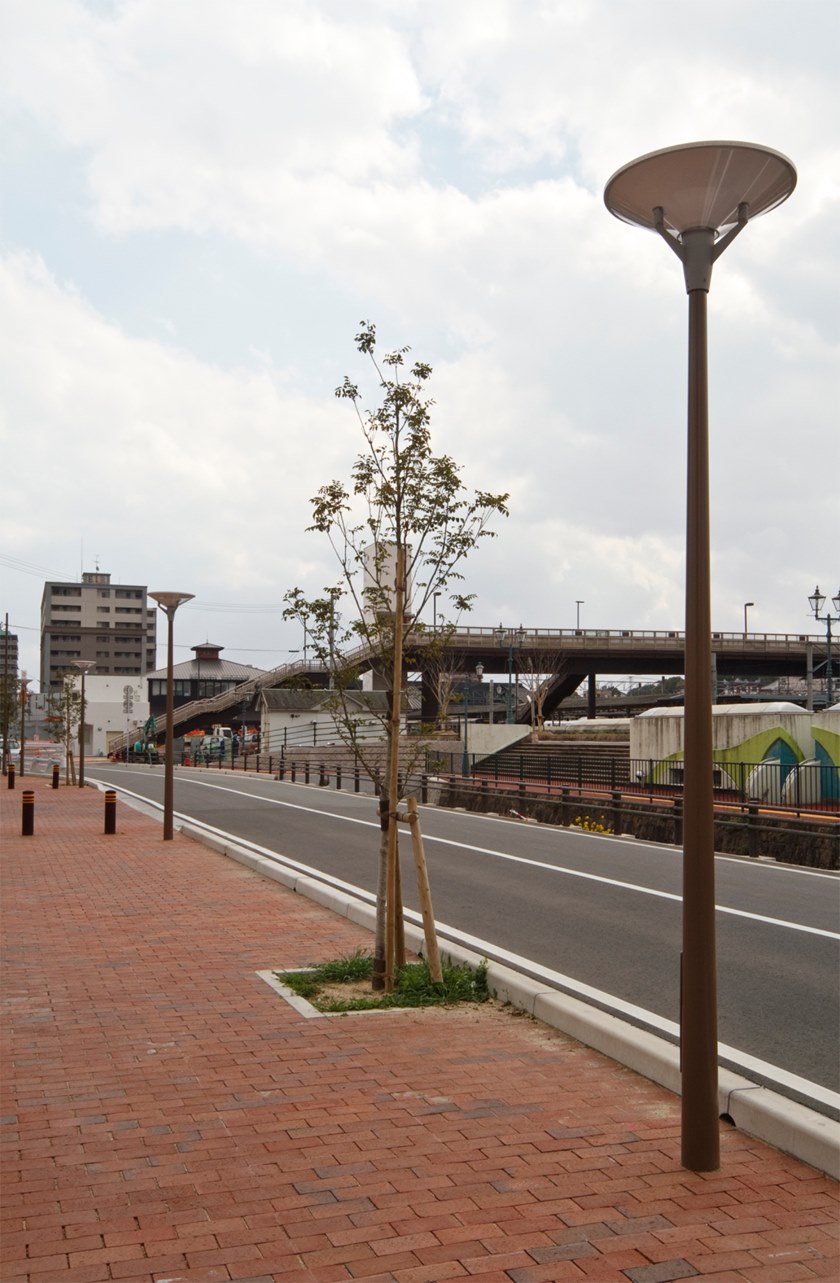

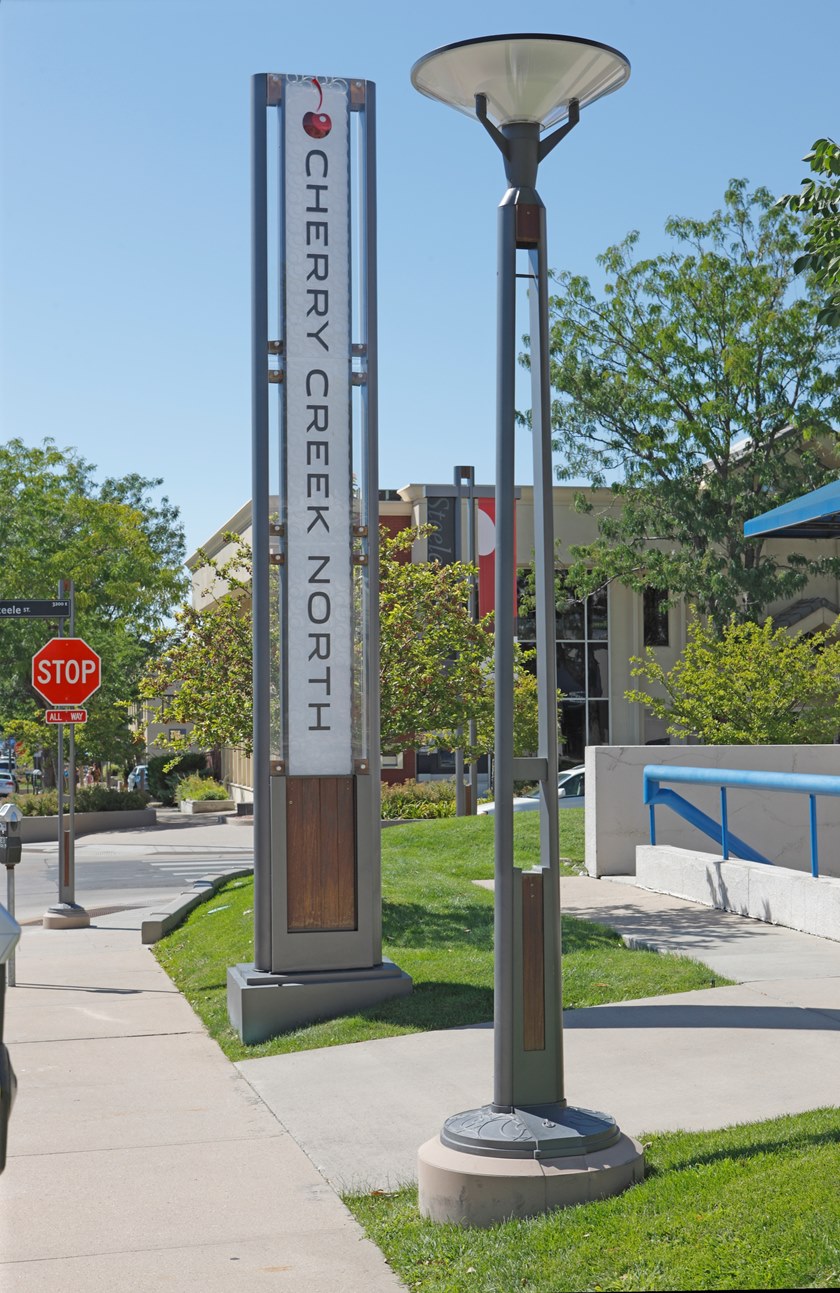

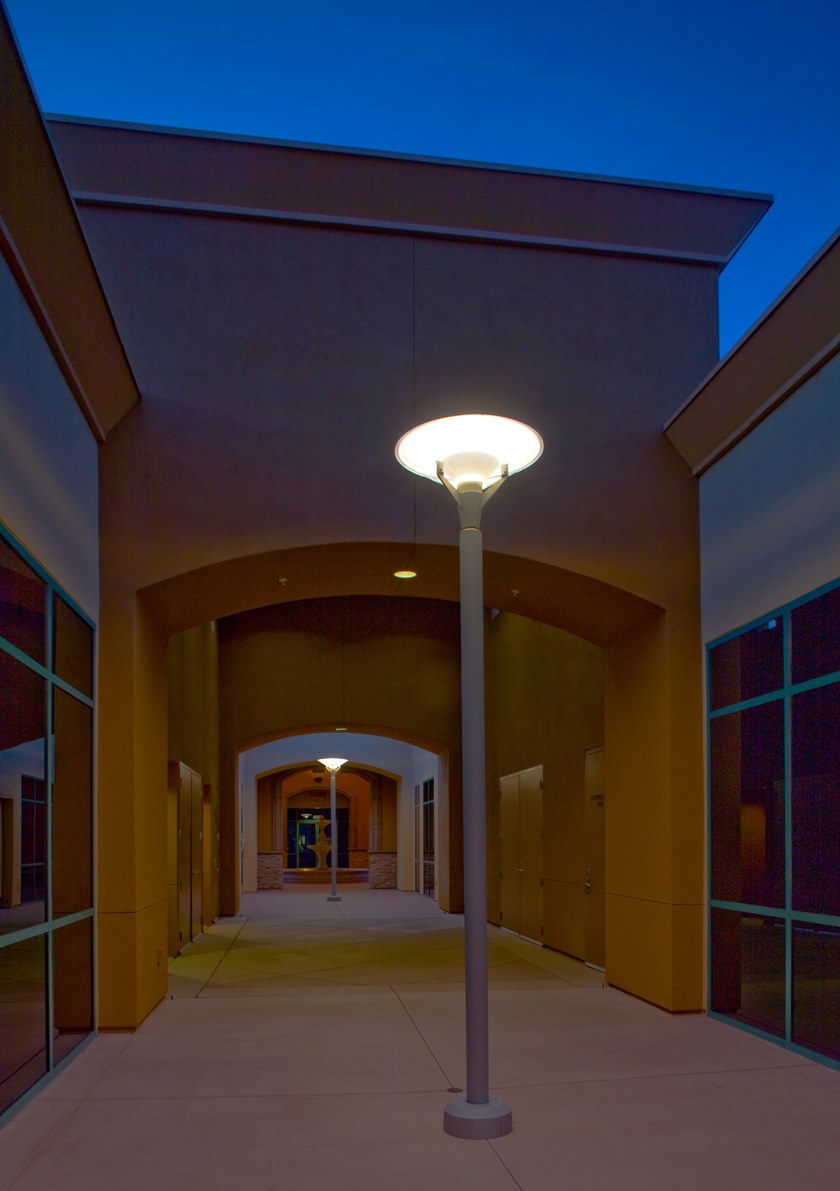

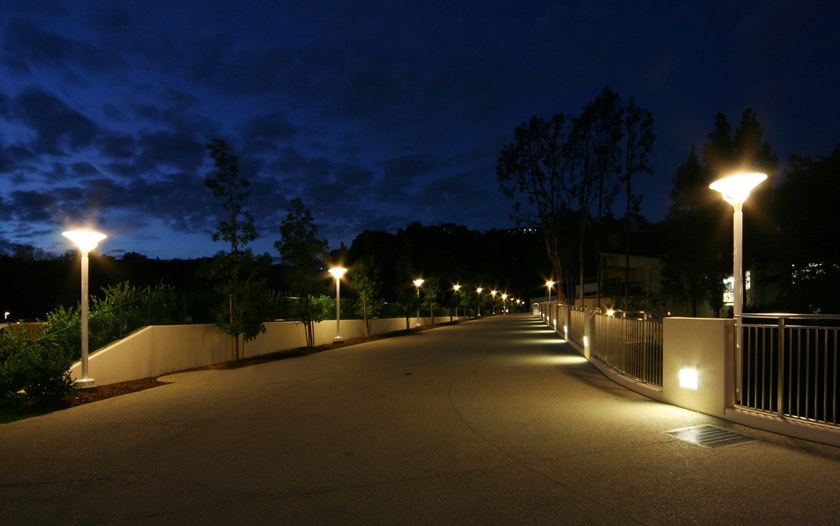

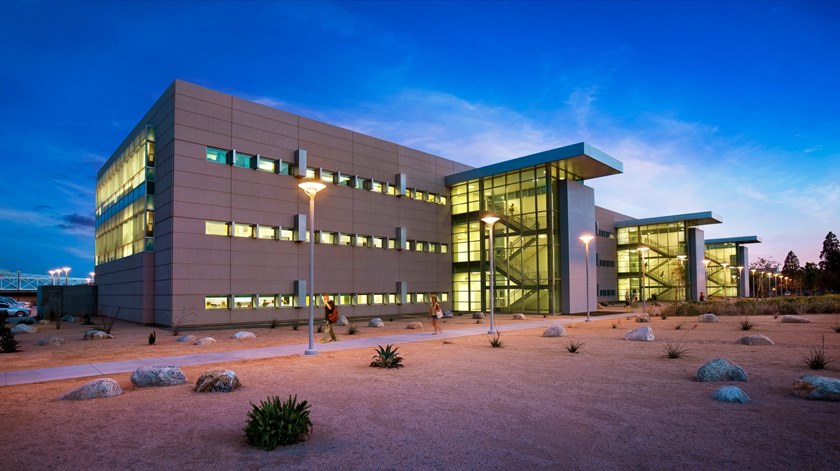

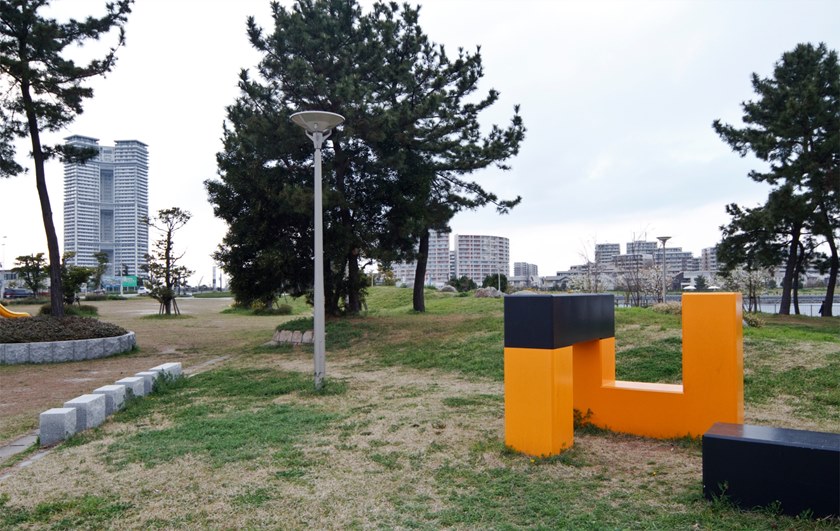

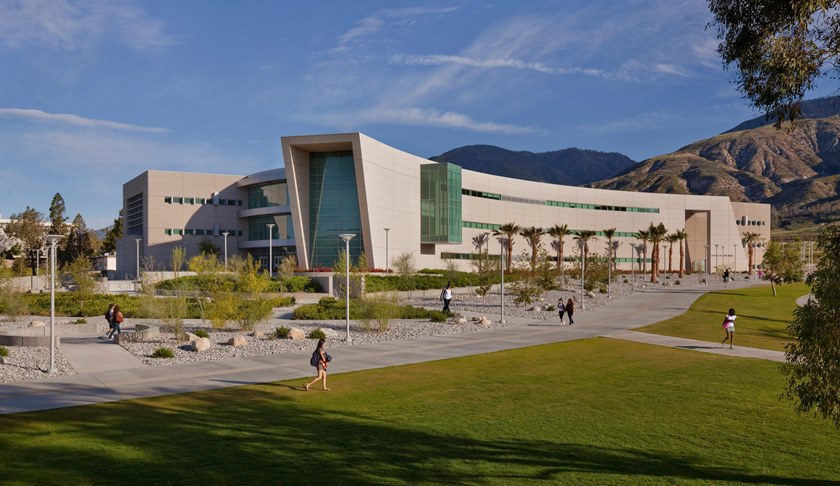

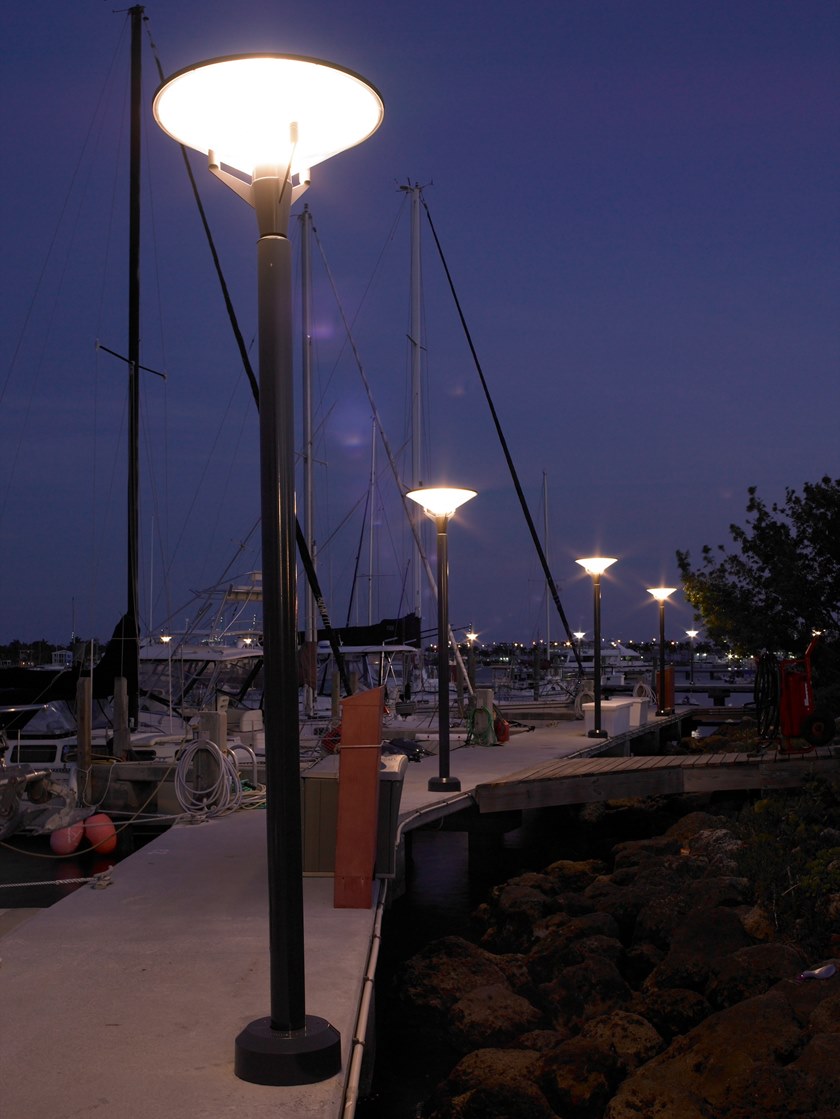

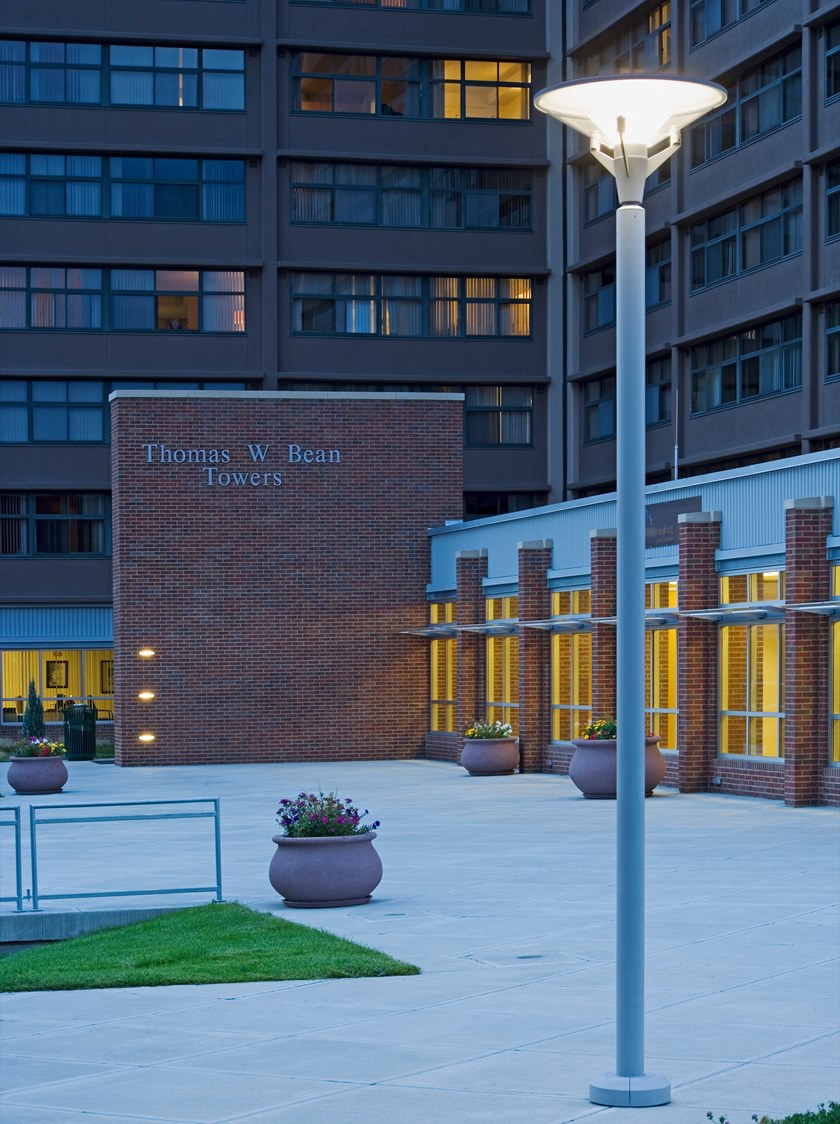

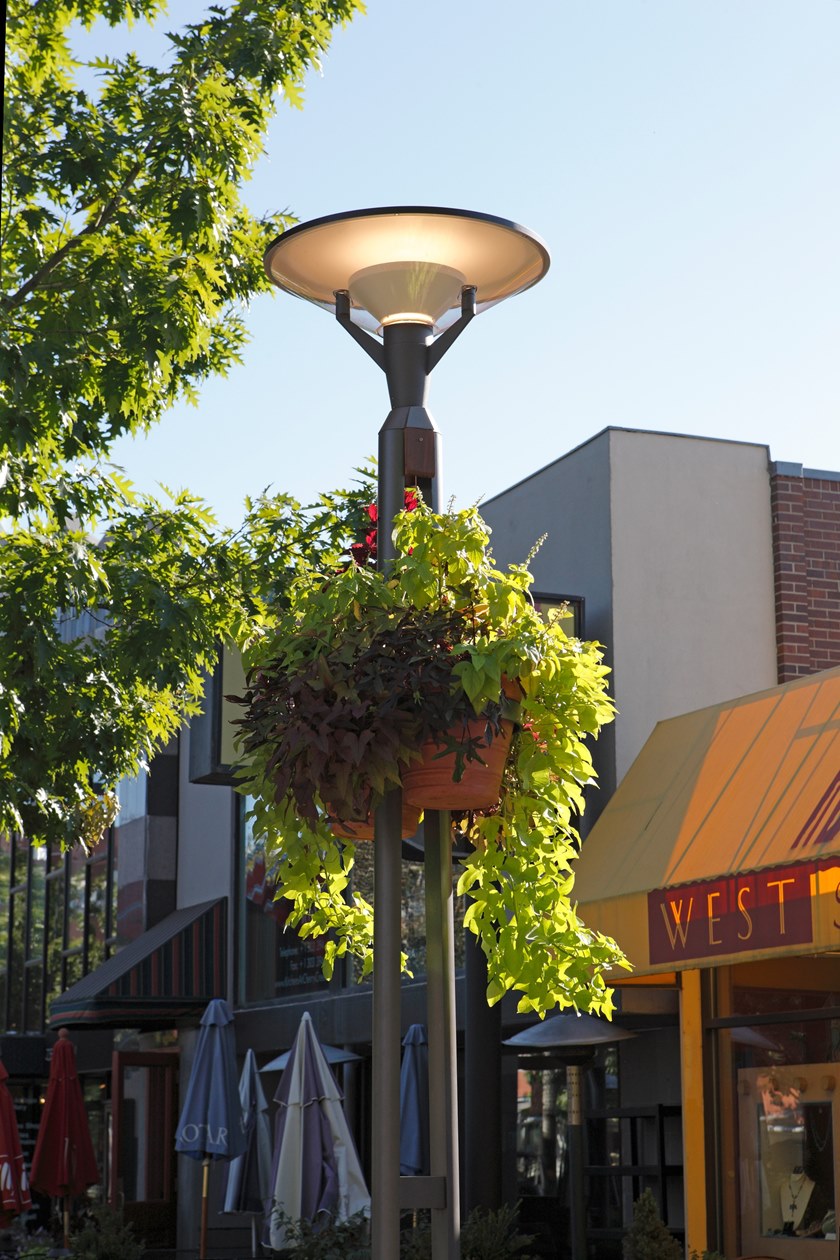

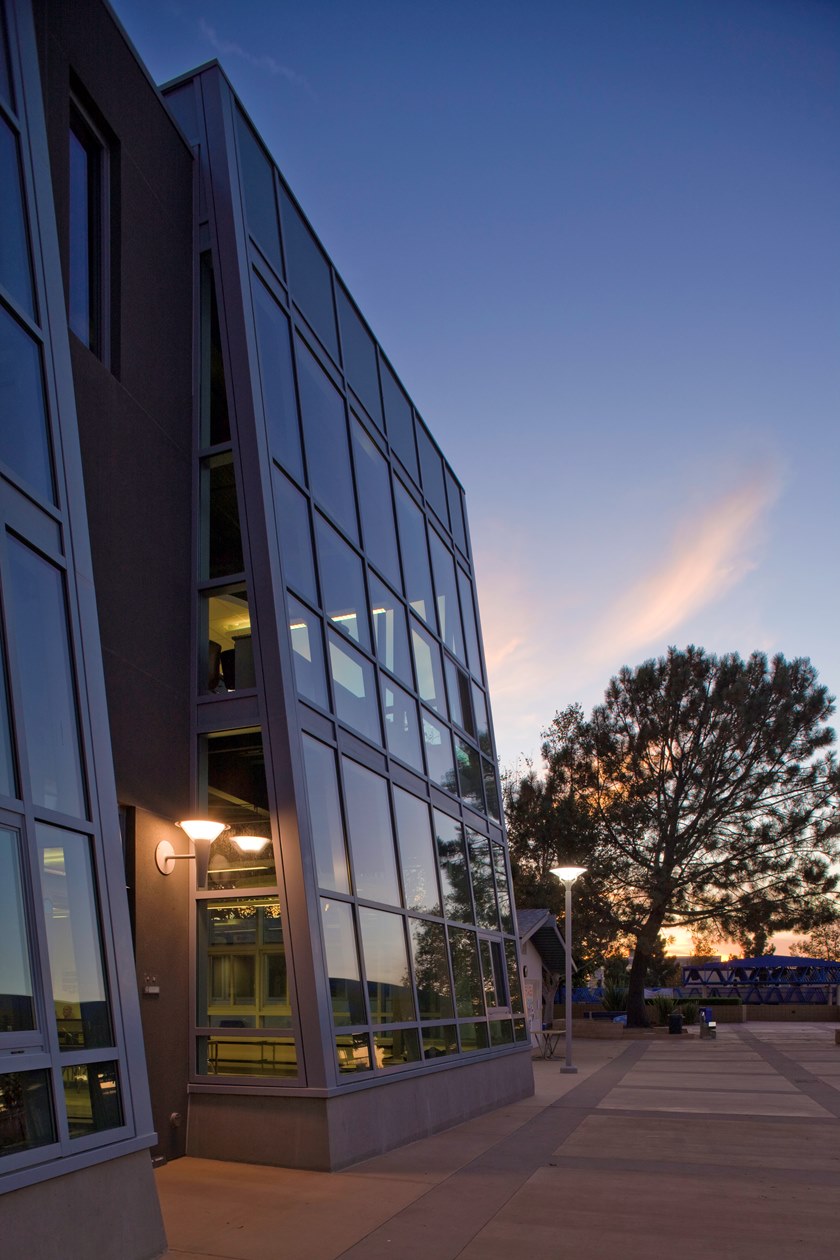

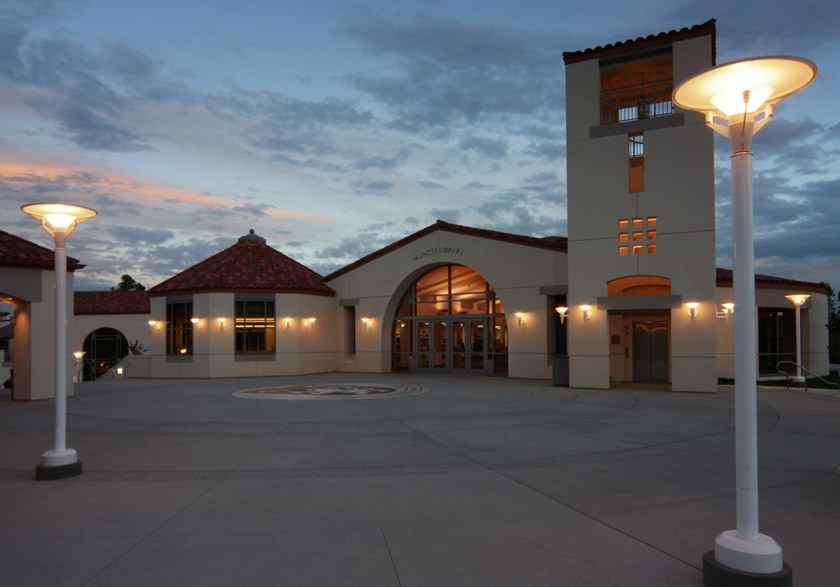

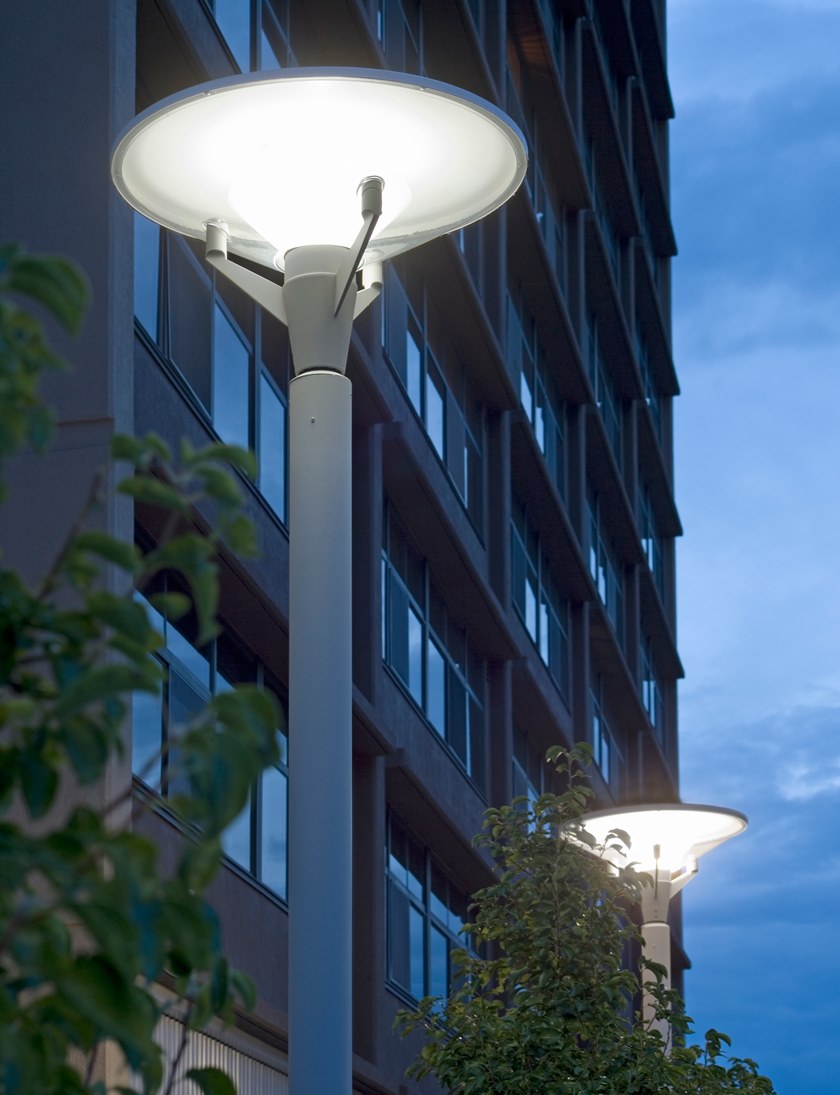

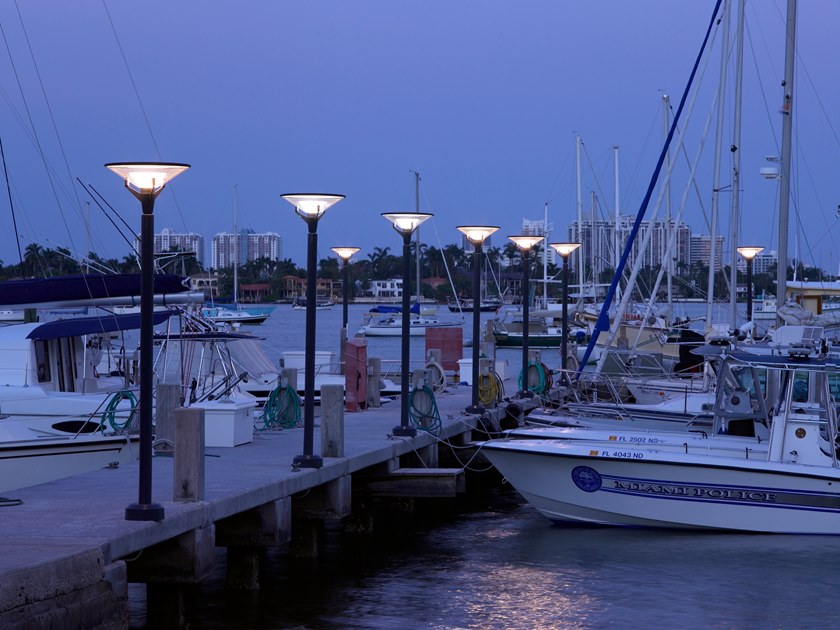

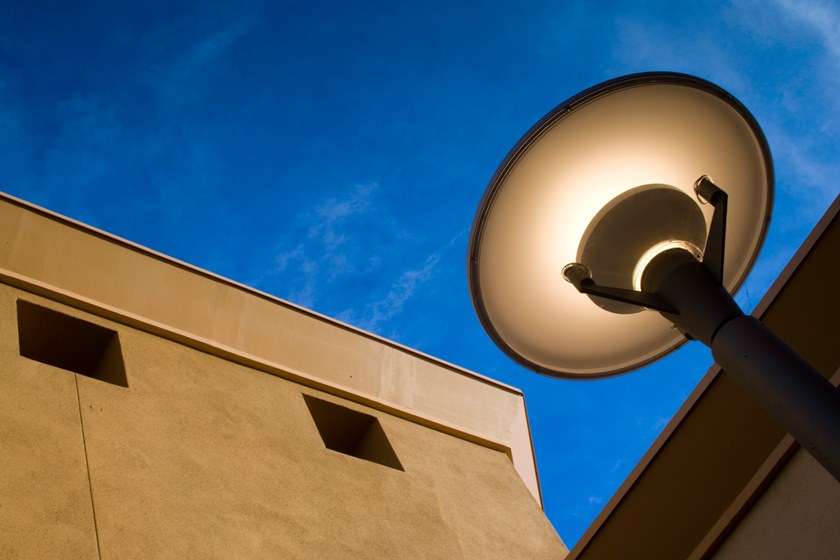

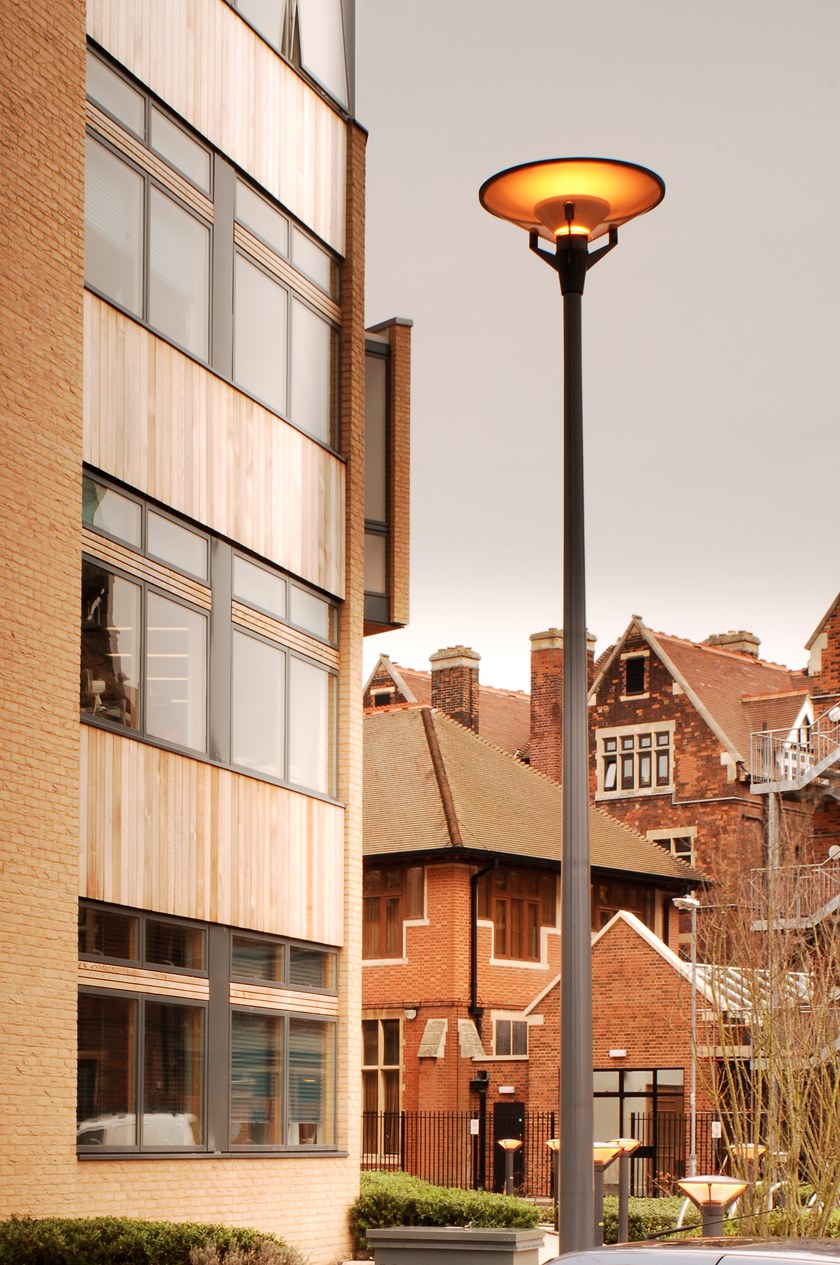

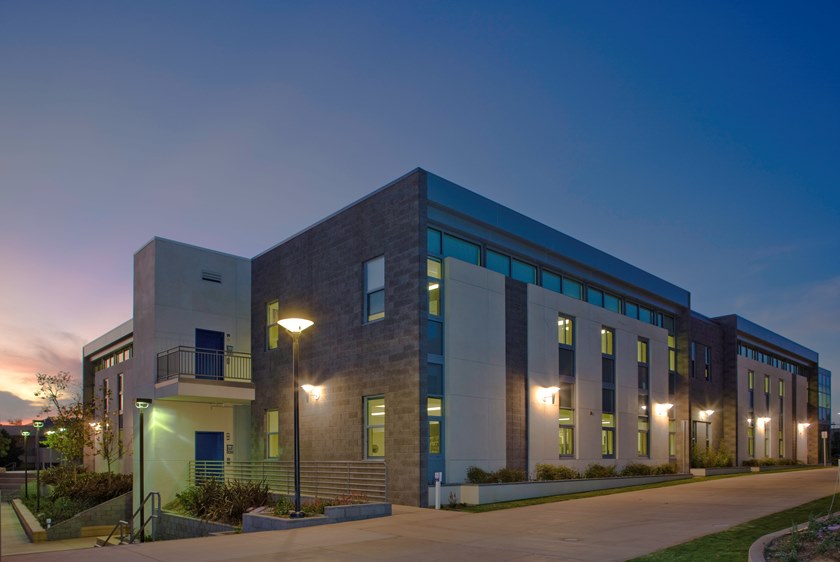

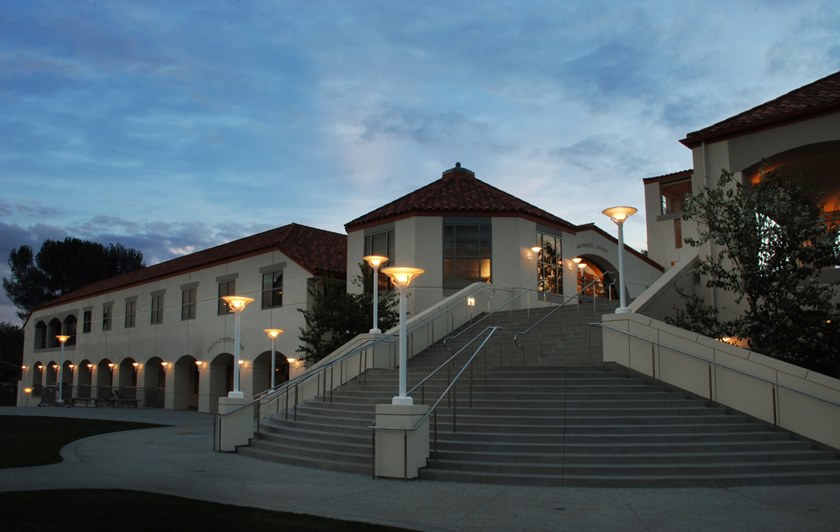

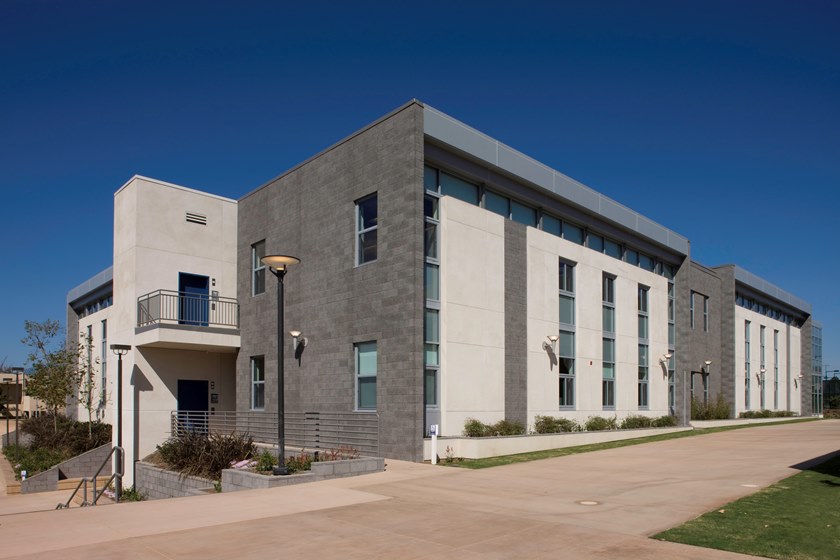

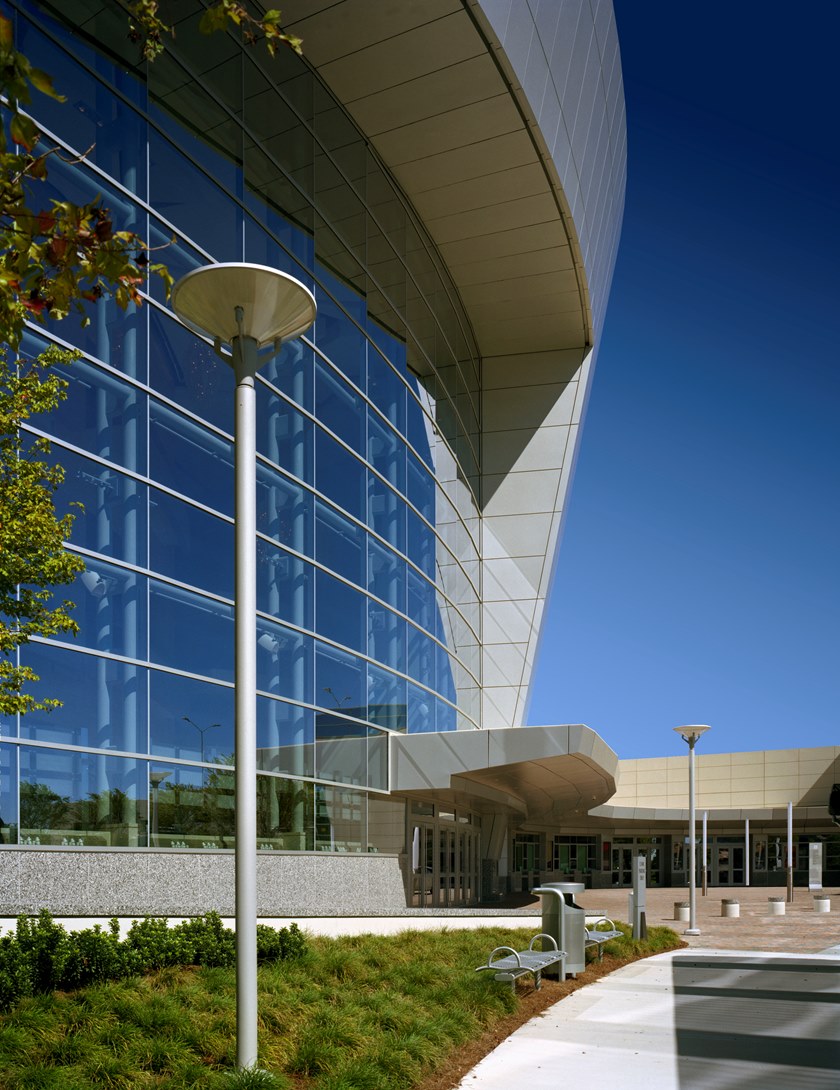

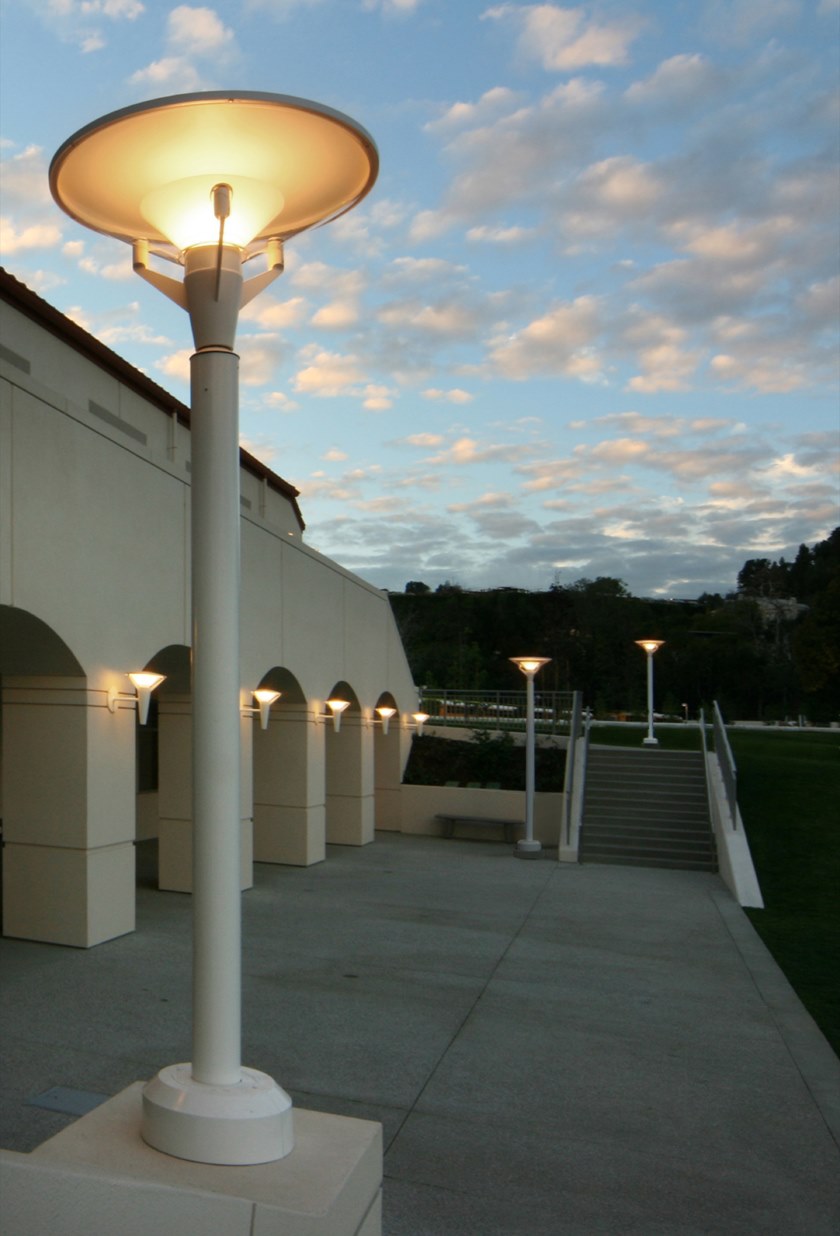

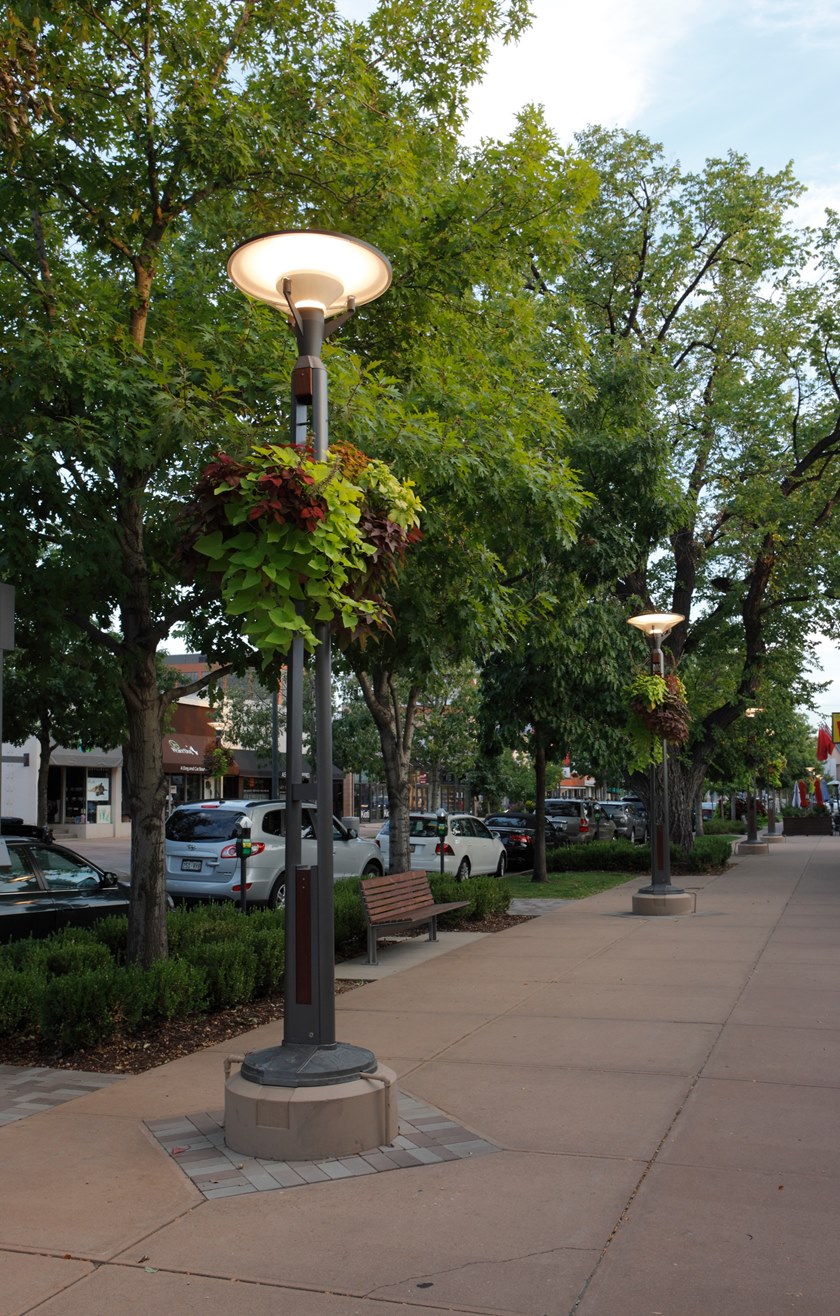

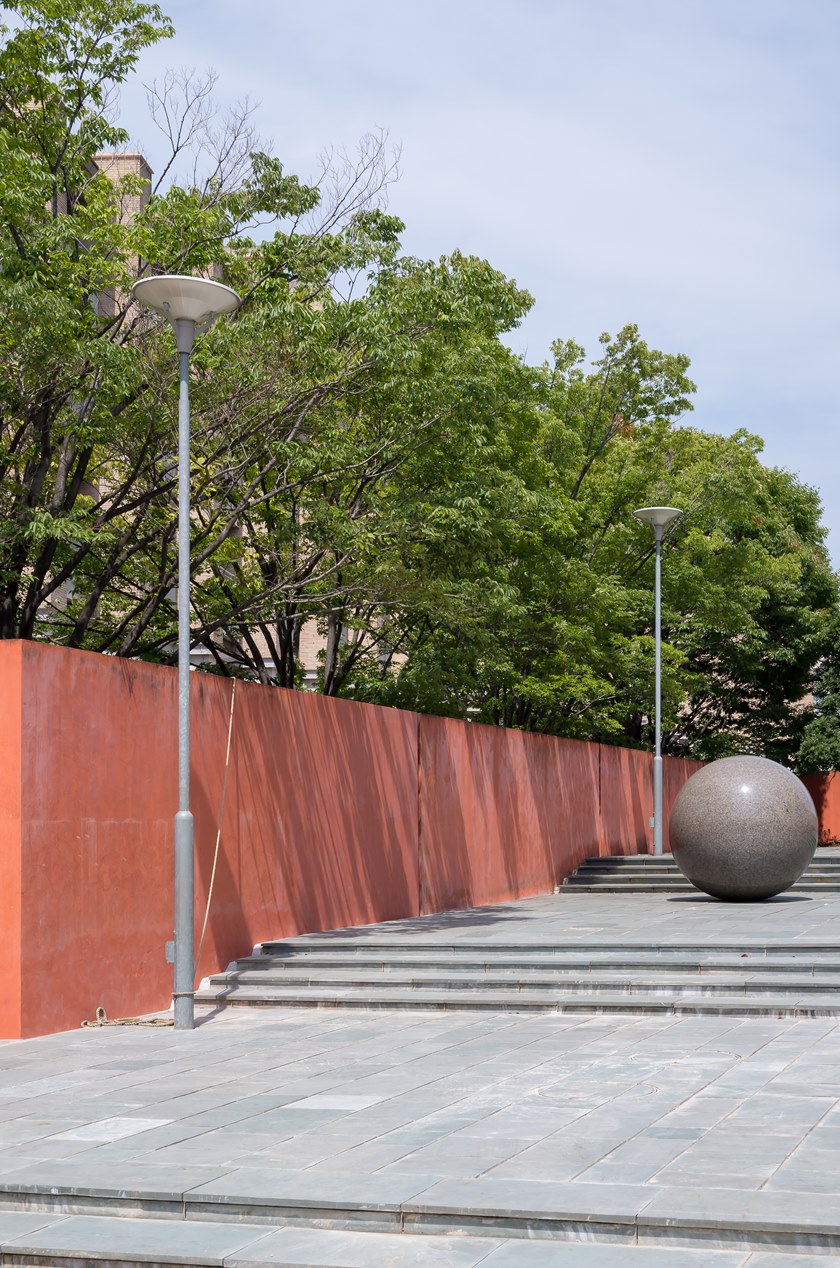

KIPP | Street lamp
The fixture emits symmetrical light directed downwards. The angle of the internal diffuser, together with the...
More details
More details
Collection
Kipp
Material
Die Cast Aluminium
Designer
Alfred Homann
PriceThe price on the site is for informational purposes only.
Add to cart
-1+
100% original
All products are original and in accordance with specifications.
InformationKIPP | Street lamp

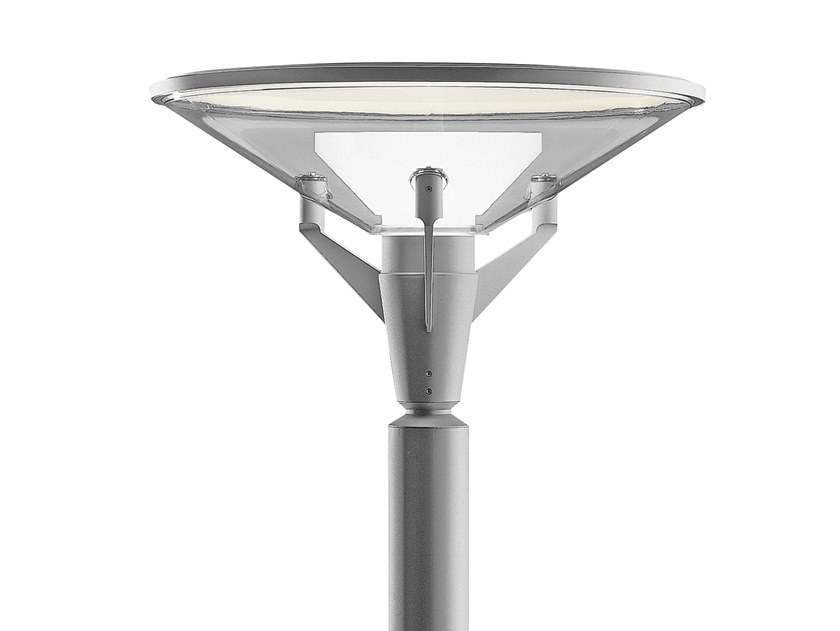

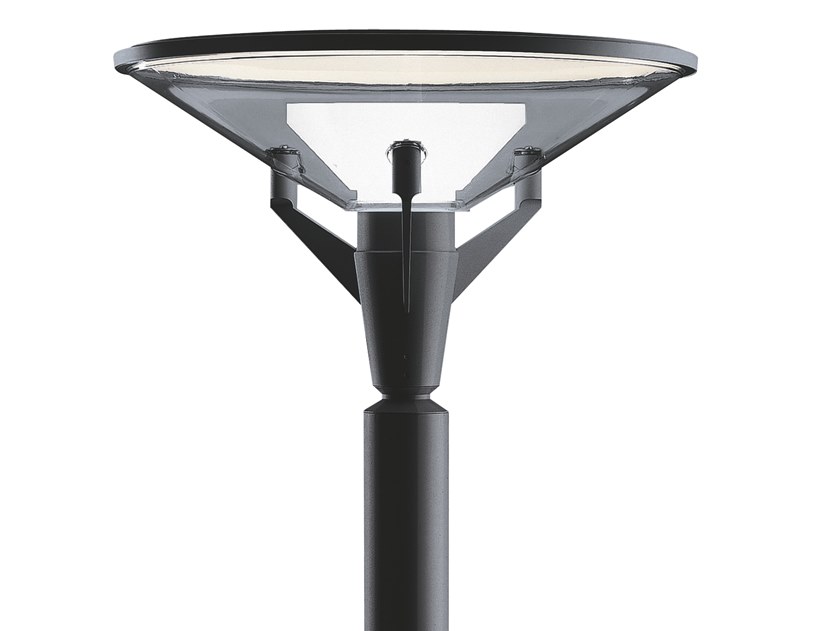

The fixture emits symmetrical light directed downwards. The angle of the internal diffuser, together with the slightly curved top shade, ensures a wide band of glare-free, uniform lighting.
Mounting

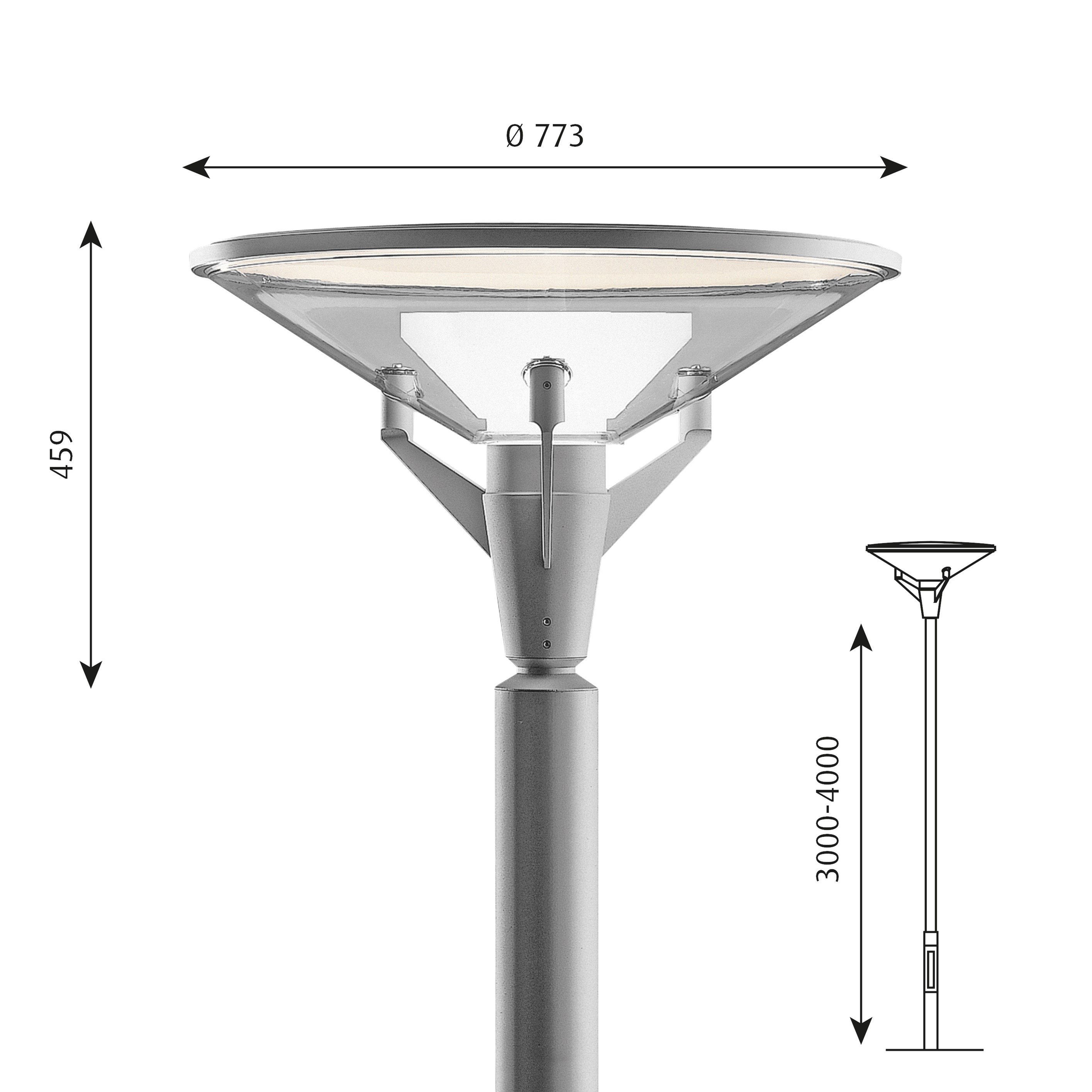

Pole dimension: Ø 60mm or Ø 76mm. Transition piece available for pole Ø 115m. Installation cable: 5m 2x1,5mm² (-DPC Class II), 5m 3x1,5mm² (-DPC Class I), 5m 4x1,5mm² (-DAC Class II), 5m 5x1,5mm² (-DAC Class I). Looping: Approved. LED driver in fixture head. LI: Cable to be mounted in fuse box (not included). Driver is placed in the fixture head. HI: Cable to be mounted in fuse box (included) connected to the driver. Both are placed in the pole.
Specification notes
Aluminium colour versions are supplied with white top shade and graphite grey versions are supplied with black top shade.
Finish
Aluminium coloured with textured surface or graphite grey, powder coated.
Light source & energy class
Energy class
Light source LED 3000K 30W
Materials
Top shade: White or black, injection moulded ASA. Enclosure: Injection moulded clear polycarbonate. Frame: Die cast aluminium.
Class
Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK10.
Mounting
Pole dimension: Ø 60mm or Ø 76mm. Transition piece available for pole Ø 115m. Installation cable: 5m 2x1,5mm² (-DPC Class II), 5m 3x1,5mm² (-DPC Class I), 5m 4x1,5mm² (-DAC Class II), 5m 5x1,5mm² (-DAC Class I). Looping: Approved. LED driver in fixture head. LI: Cable to be mounted in fuse box (not included). Driver is placed in the fixture head. HI: Cable to be mounted in fuse box (included) connected to the driver. Both are placed in the pole.
Specification notes
Aluminium colour versions are supplied with white top shade and graphite grey versions are supplied with black top shade.
Finish
Aluminium coloured with textured surface or graphite grey, powder coated.
Light source & energy class
Energy class
Light source LED 3000K 30W
Materials
Top shade: White or black, injection moulded ASA. Enclosure: Injection moulded clear polycarbonate. Frame: Die cast aluminium.
Class
Ingress protection IP66. Electric shock protection I w. ground, II w/o ground. IK10.
