FILO 10 Hinged door
Linvisibile Alba | FILO 10 Hinged door is the exclusive door, which thanks to panel thickness of 102 m...
More details
More details
Collection
Linvisibile Alba
Material
MDF
PriceThe price on the site is for informational purposes only.
Add to cart
-1+
100% original
All products are original and in accordance with specifications.
InformationFILO 10 Hinged door

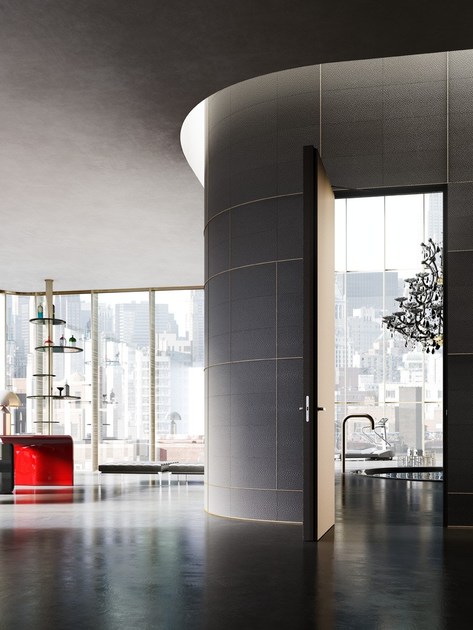

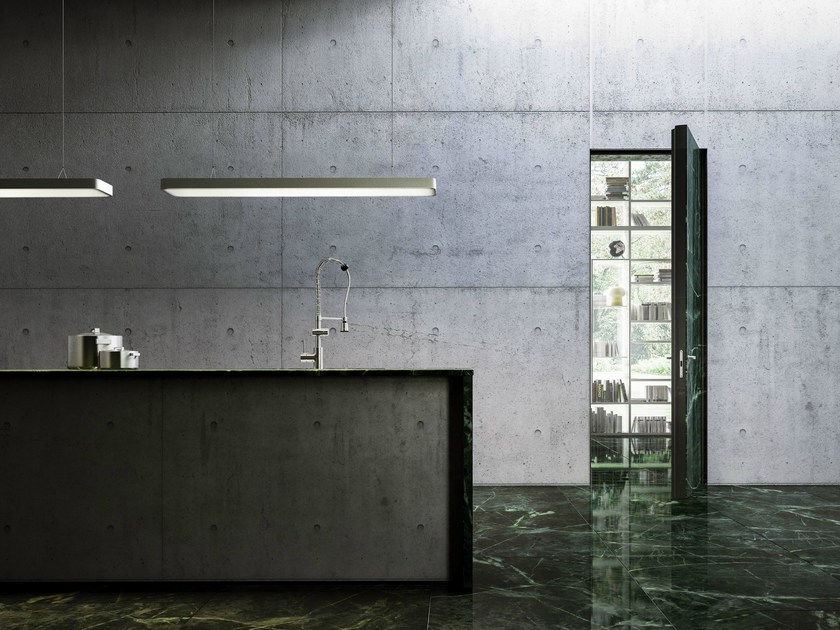

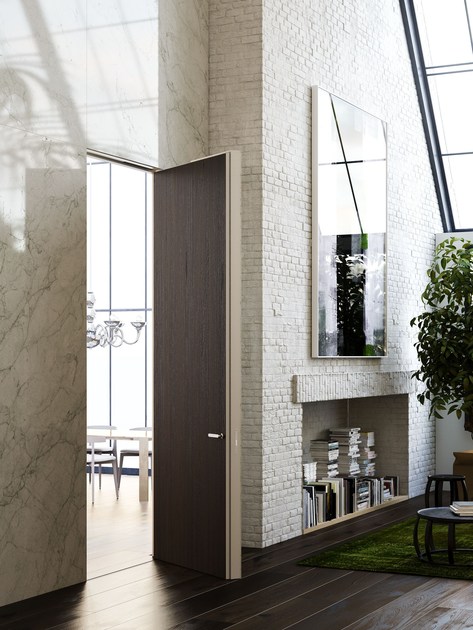

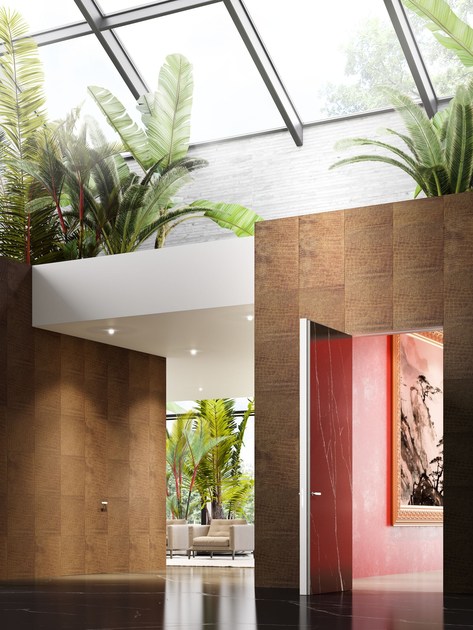

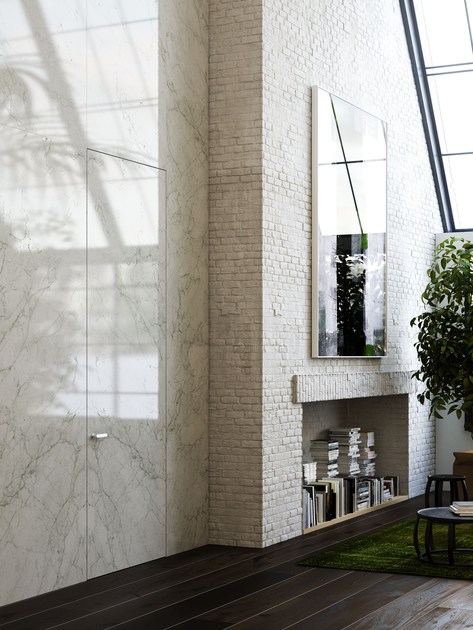

Linvisibile Alba | FILO 10 Hinged door is the exclusive door, which thanks to panel thickness of 102 mm, allows a perfect flush with the wall on both sides of the panel. The product stands out for only 3 mm perimetral gap between the panel and the wall.

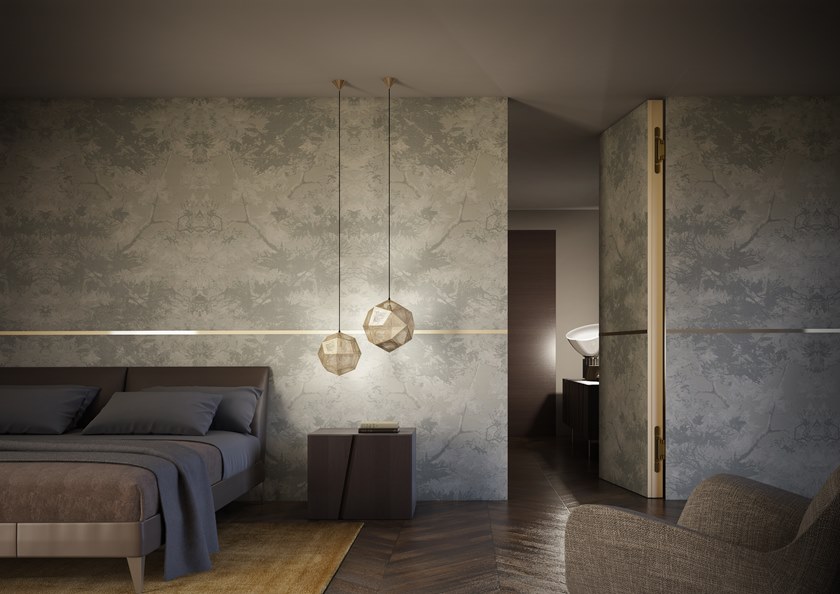

Like all Linvisibile products, Alba | FILO 10 Hinged door is distinguished by the use of concealed hinges and the absence of door frames or jambs to achieve seamless continuity between wall and door.

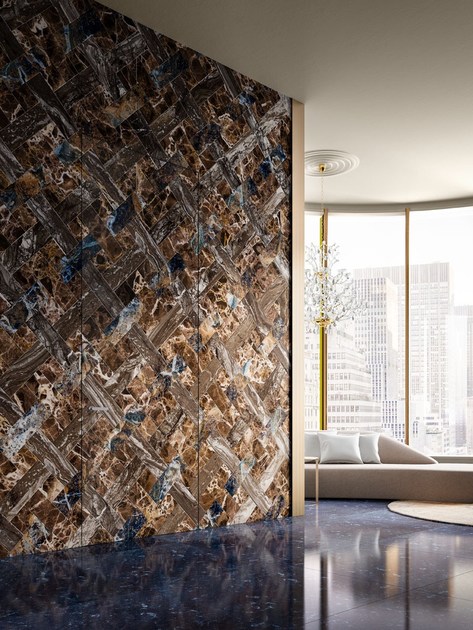

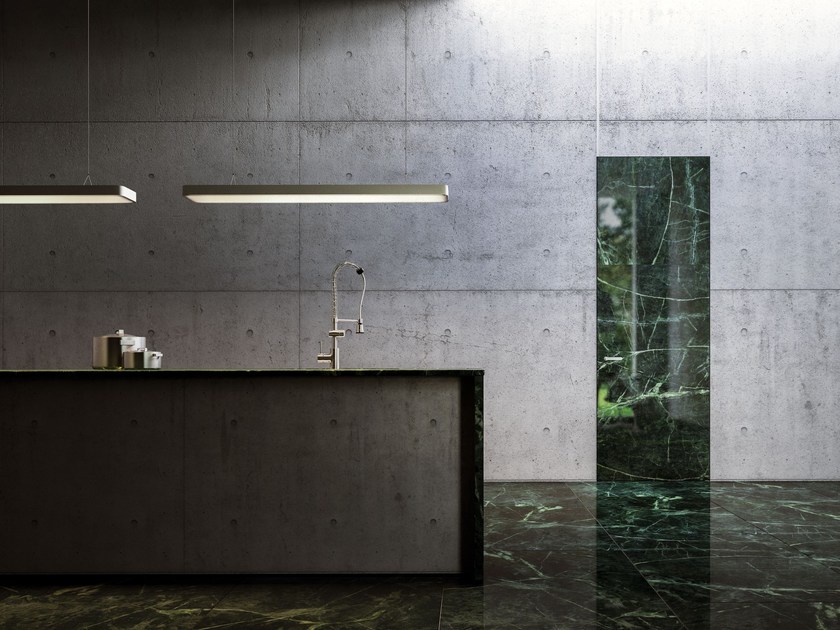

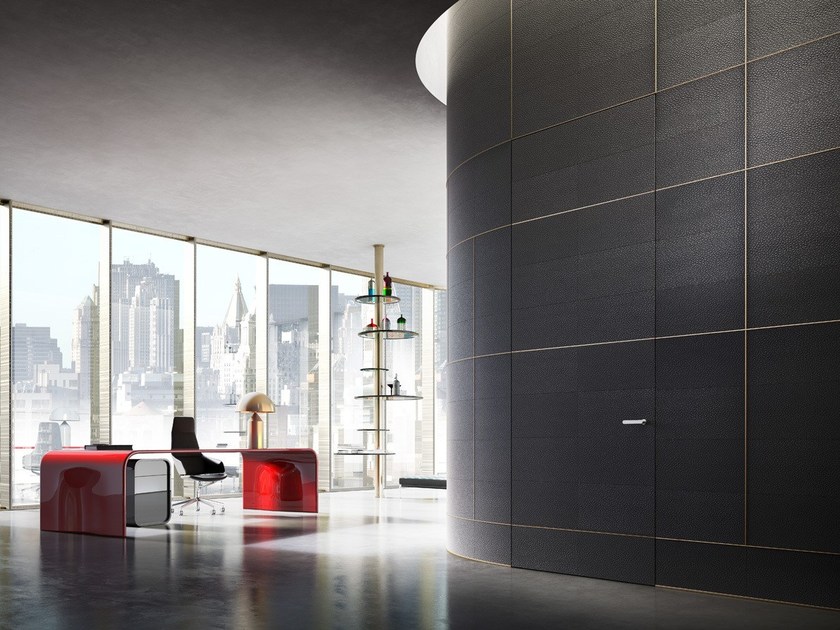

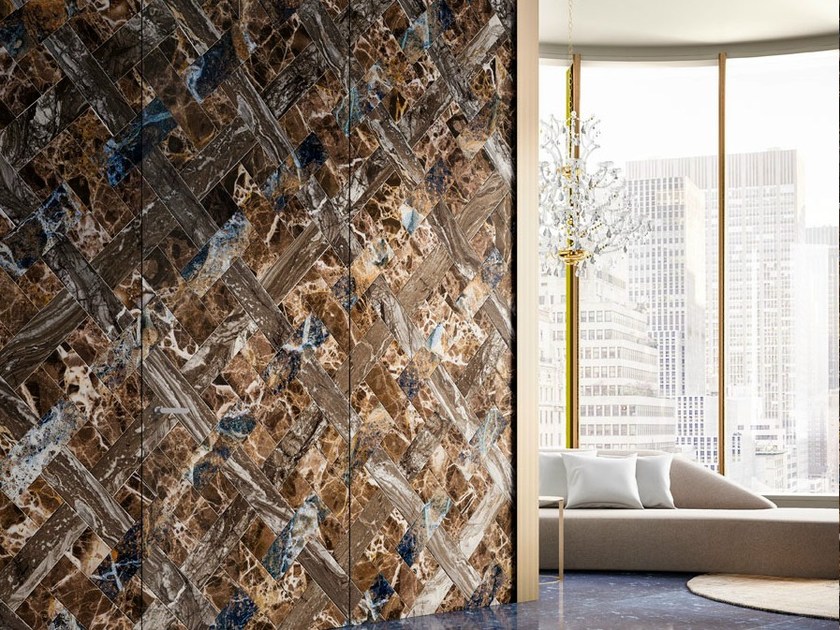

It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well.
Technical features and details:
Linvisibile Alba | FILO 10 Hinged door consists of:
– Extruded aluminium frame (EN AW 6060 alloy – Anticorodal 063) that replaces the frame (outer frame-posts) and adapts to walls and plasterboard walls with different thickness. Prepared for Pull or Push openings. Paintable with water based colors of good quality, enamel paints etc. It can be manufactured in a wide range of available shapes and sizes. Assembly of the frame with MDF triangles put on the two
upper corners and from jamb to jamb;
– A panel with hollow-core structure,102 mm thick, made with a perimeter frame in solid wood with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side.Rebates on the perimeter and seals in PVC. Class E1 low formaldehyde emission;
– Concealed hinges: invisible hinges totally disappearing, for doors with aluminum frame. UL certification, 160 kg capacity, 180 ° opening, front length 240 mm . Comply to DIN, sliding bearing functioning. Adjustable hinge on three axes. Standard finish satin chrome, other finishes on demand.
The Concealed door closer is perfect to be installed on the hinged system
Dimensions and personalisation:
Linvisibile Alba | FILO 10 Hinged door is available in the following sizes (clear width, single leaf):
– all width from 700 to 1200 mm;
– all height from 1900 to 3500 mm;
Linvisibile Alba | FILO 10 Hinged door is available in single leaf as well as double.

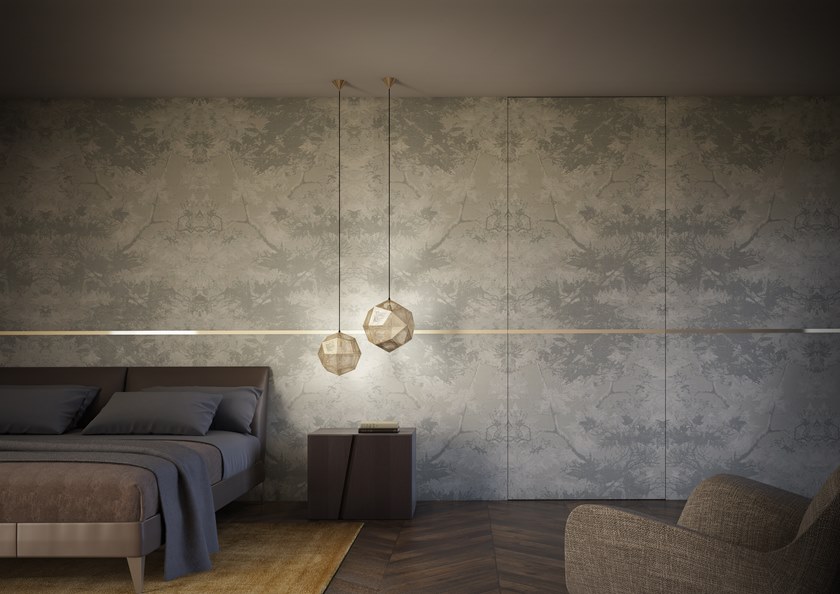

It can be coated with wallpaper, trims, gobelin, decorative woods, decorations,ceramics, skirting board and mirrors.
Peculiar technical details:
• It is possible to produce the frame without the header.
• It is possible to prearrange the panel for the introduction of a mirror or glass.
• It is possible to apply a concealed door closure.
Dimensions: W from 700 to 1200 mm
H from 1900 to 3500 mm
Like all Linvisibile products, Alba | FILO 10 Hinged door is distinguished by the use of concealed hinges and the absence of door frames or jambs to achieve seamless continuity between wall and door.
It can be coated with almost any type of material (metal, stone, leather) to create special atmospheres, in a tasteful way. There are lacquered (glossy or matt) and wooden versions offered as well.
Technical features and details:
Linvisibile Alba | FILO 10 Hinged door consists of:
– Extruded aluminium frame (EN AW 6060 alloy – Anticorodal 063) that replaces the frame (outer frame-posts) and adapts to walls and plasterboard walls with different thickness. Prepared for Pull or Push openings. Paintable with water based colors of good quality, enamel paints etc. It can be manufactured in a wide range of available shapes and sizes. Assembly of the frame with MDF triangles put on the two
upper corners and from jamb to jamb;
– A panel with hollow-core structure,102 mm thick, made with a perimeter frame in solid wood with high-density honeycomb interior, finished with 2 MDF sheets, 5 mm thick, on each side.Rebates on the perimeter and seals in PVC. Class E1 low formaldehyde emission;
– Concealed hinges: invisible hinges totally disappearing, for doors with aluminum frame. UL certification, 160 kg capacity, 180 ° opening, front length 240 mm . Comply to DIN, sliding bearing functioning. Adjustable hinge on three axes. Standard finish satin chrome, other finishes on demand.
The Concealed door closer is perfect to be installed on the hinged system
Dimensions and personalisation:
Linvisibile Alba | FILO 10 Hinged door is available in the following sizes (clear width, single leaf):
– all width from 700 to 1200 mm;
– all height from 1900 to 3500 mm;
Linvisibile Alba | FILO 10 Hinged door is available in single leaf as well as double.
It can be coated with wallpaper, trims, gobelin, decorative woods, decorations,ceramics, skirting board and mirrors.
Peculiar technical details:
• It is possible to produce the frame without the header.
• It is possible to prearrange the panel for the introduction of a mirror or glass.
• It is possible to apply a concealed door closure.
Dimensions: W from 700 to 1200 mm
H from 1900 to 3500 mm
