Depending on the type of door (Filo 10, Filo 5 or Infinito), the Titano System can be realized in the following dimensions:
Filo 10 panel version: Width 900 mm to 1200 mm. Height 1900 mm to 3500 mm. Max. 150 kg
Filo 5 panel version: Width 900 mm to 2000 mm. Height 1900 mm to 3500 mm. Max. 150 kg
Filo 10 panel version: Width 900 mm to 1200 mm. Height 1900 mm to 3500 mm. Max. 150 kg
Filo 5 panel version: Width 900 mm to 2000 mm. Height 1900 mm to 3500 mm. Max. 150 kg
Infinito panel version: Width 900 mm to 1400 mm. Height 1900 mm to 3500 mm. Max. 150 kg
Technical features:

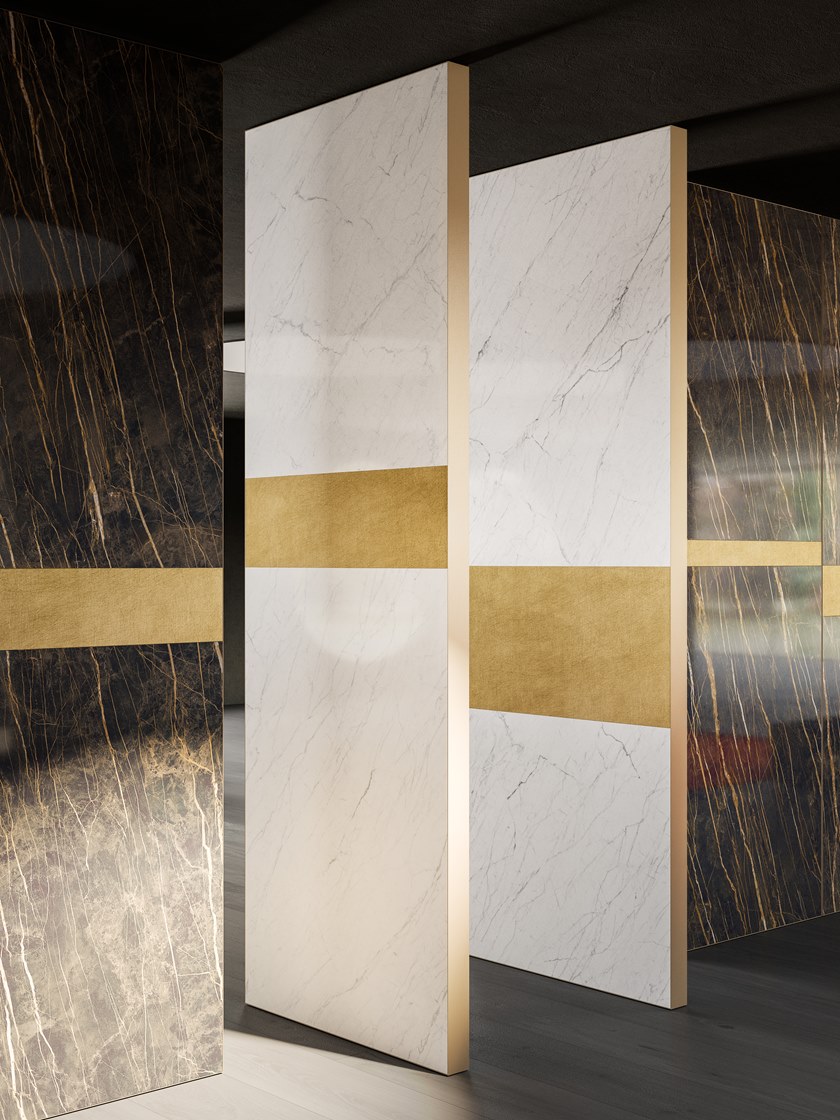

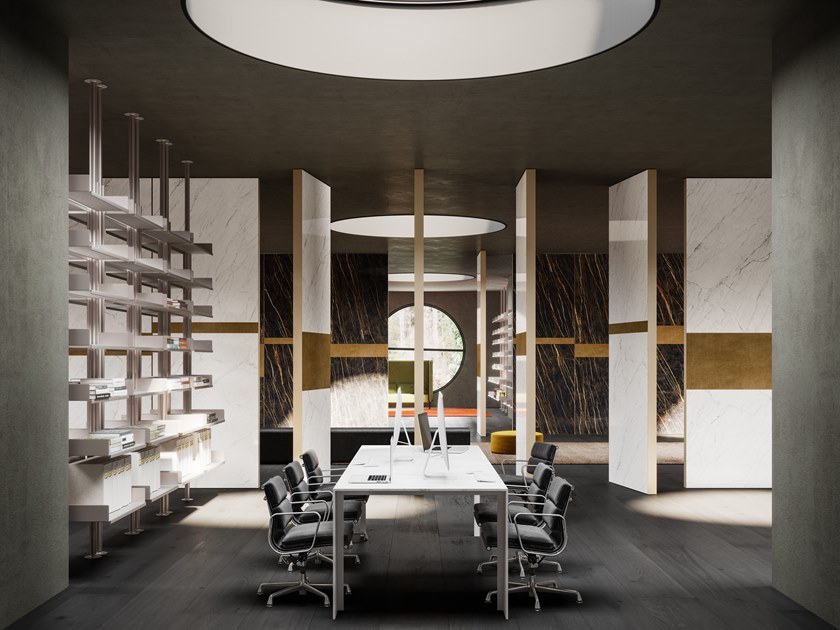

• Concealed rotation pins (System 3) centrally positioned, which allow 360° rotation and leaf locking in 90° steps. The customer must become familiar with the speed and range of the door’s movement for correct and safe use and/or positioning.
• Gaps: Upper 4 mm, lower: 13 mm, between the leaves: 10 mm, compared to the wall: 10 mm.
• Mechanical/electric locks not included.
• The application of handles is not foreseen.
• It is not possible to apply the decentralized pin.
Technical features:
• Concealed rotation pins (System 3) centrally positioned, which allow 360° rotation and leaf locking in 90° steps. The customer must become familiar with the speed and range of the door’s movement for correct and safe use and/or positioning.
• Gaps: Upper 4 mm, lower: 13 mm, between the leaves: 10 mm, compared to the wall: 10 mm.
• Mechanical/electric locks not included.
• The application of handles is not foreseen.
• It is not possible to apply the decentralized pin.
