InformationLitus 2.8

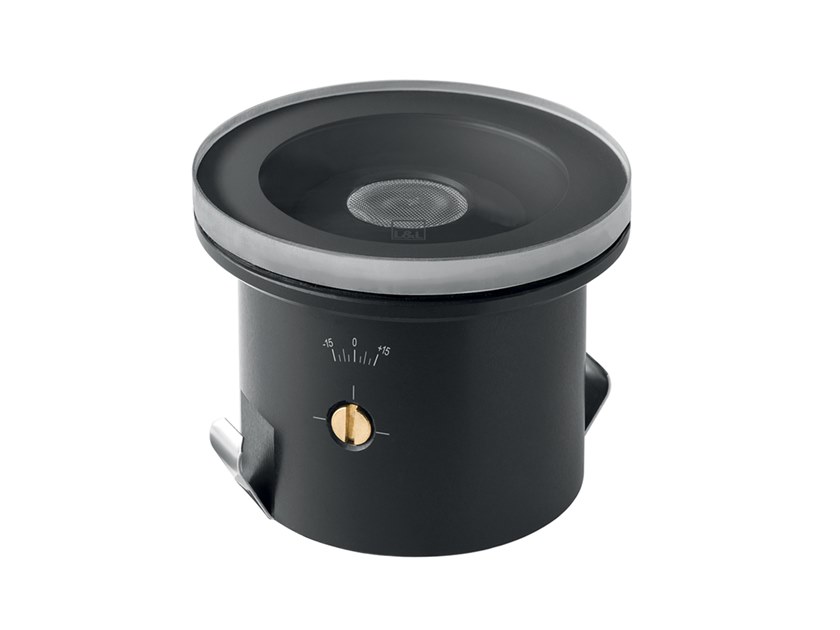

Recessed uplight for outdoor applications; recessed (ceiling, wall, floor); Power: 2,5W, 3,5W; Power supply: 24Vdc; Lumen output at source: 168 lm (3000K, 2.5W, CRI 80), 147 lm (3000K, 2.5W, CRI 90), 224 lm (3000K, 3.5W, CRI 80), 196 lm (3000K, 3.5W, CRI 90); Delivered lumen output: 141 lm (3000K, 22°, 2.5W, CRI 80), 125 lm (3000K, 22°, 2.5W, CRI 90), 188 lm (3000K, 22°, 3.5W, CRI 80), 165 lm (3000K, 22°, 3.5W, CRI 90); 1 power LED, 1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13° tiltable ±15°, 22° tiltable ±15°, 30° tiltable ±15°, sharp 35° tiltable ±15°, 48° tiltable ±15°; CRI: 80, 90; Material: body in anodized aluminium, screen in tempered, serigraphed-grey and transparent extra-clear glass; power supply unit not included; includes 1.5 m neoprene cable, H05RN-F 2x0.75/0.75 Ø6.3 mm; Ingress protection: IP67; Impact resistance: IK08; version with screen in white, serigraphed glass available on request; Protection systems: IPS; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: III; Weight: 300 g; Dimensions: Ø72x73 mm.
