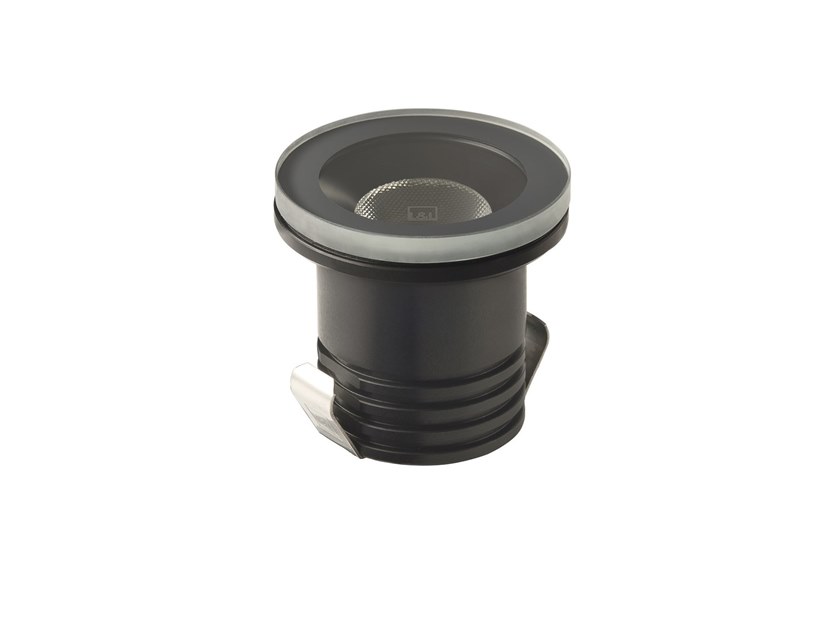

InformationLitus 1.6
Recessed uplight for outdoor applications; recessed (ceiling, wall, floor); Power: 2,5W, 3,5W; Power supply: 24Vdc; Lumen output at source: 168 lm (3000K, 2,5W, CRI 80), 147 lm (3000K, 2,5W, CRI 90), 224 lm (3000K, 3,5W, CRI 80), 196 lm (3000K, 3,5W, CRI 90); Delivered lumen output: 141 lm (3000K, 22°, 2,5W, CRI 80), 125 lm (3000K, 22°, 2,5W, CRI 90), 188 lm (3000K, 22°, 3,5W, CRI 80), 165 lm (3000K, 22°, 3,5W, CRI 90); 1 power LED, 1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°, 22°, 30°, sharp 35°, 48°, diffuse; CRI: 80, 90; Material: body in anodized aluminium, screen in tempered, serigraphed-grey and transparent extra-clear glass; power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; Ingress protection: IP67; Impact resistance: IK08; version with screen in white, serigraphed glass available on request; Protection systems: IPS; Operating temperature: -20°C — +45°C; Maximum device temperature: 40°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: III; Weight: 200 g; Dimensions: Ø48x63 mm.
