L&L Luce&Light

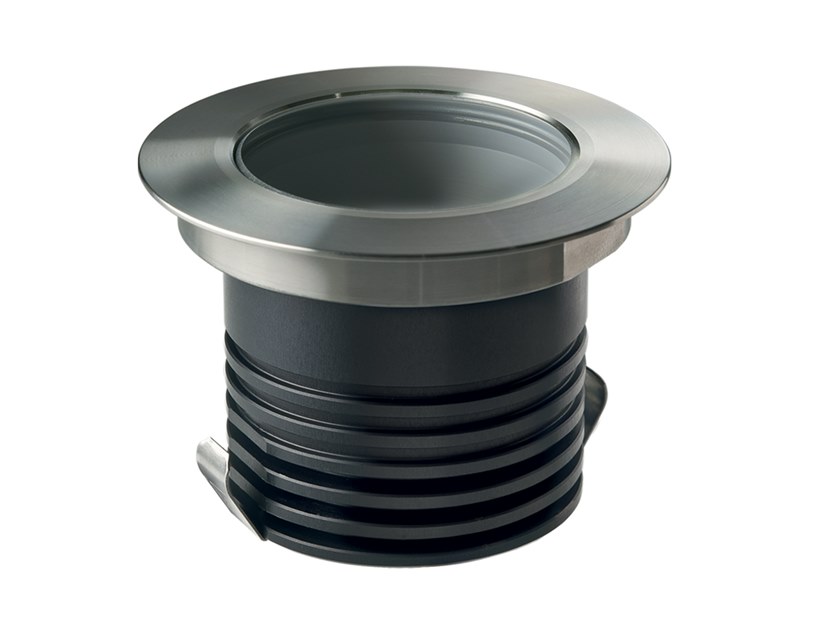

Smoothy 2.4
Recessed for outdoor applications; recessed (ceiling, wall, floor); 3.5W (5° optics), 5W, 7W; RGB: max 7W; 24...
More details
More details
Collection
Smoothy
Material
Aluminium
PriceThe price on the site is for informational purposes only.
Add to cart
-1+
100% original
All products are original and in accordance with specifications.
InformationSmoothy 2.4
Recessed for outdoor applications; recessed (ceiling, wall, floor); 3.5W (5° optics), 5W, 7W; RGB: max 7W; 24Vdc; RGB: max 700mA; Lumen output at source: 488 lm (3000K, 5W, CRI 80), 452 lm (3000K, 5W, CRI 90), 657 lm (3000K, 7W, CRI 80), 608 lm (3000K, 7W, CRI 90), RGB: 311 lm, R: 108 lm G: 133 lm B: 70 lm (700mA); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80, 284 lm (3000K, 34°, 5W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), 374 lm (3000K, 34°, 7W, CRI 90), RGB: 235 lm, R: 92 lm G: 105 lm B: 38 lm (700mA, 34°); 1 high-intensity power LED, RGB: 3 power LEDs, 3 MacAdam steps (white LED colour), 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K, RGB; Optics: 5°, 8°, 11°, 17°, 20°, sharp 21°, 34°, 45°, sharp 61°, 13°x52°, 21°x42°, diffuse; CRI: 80, 90; body in anodized aluminium, trim in AISI 316L stainless steel, screen in tempered, transparent extra-clear glass (optics version), screen in sandblasted, tempered extra-clear glass (diffuse version); power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; RGB: includes 1,5 m FEP+RUB cable (equivalent to H05RN-F cable) 6x0,50/0,50 Ø6,3 mm; Wiring: parallel; RGB: series; Ingress protection: IP67; Impact resistance: IK08; 5° optics and 3.5W version: 4000K only CRI 80; Protection systems: IPS, PID; Operating temperature: -20°C — +45°C; Maximum device temperature: 50°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: III; Weight: 430 g; Dimensions: Ø84x67 mm; Cutout dimensions: Ø75 mm; Volume of thermal heatsink: Ø200x140 mm.
Manufacture year: 2018
Manufacture year: 2018
BrandL&L Luce&Light
