L&L Luce&Light
Smoothy 1.6
Recessed for outdoor applications; recessed (ceiling, wall, floor); 2,5W, 3,5W; 24Vdc; Lumen output at source:...
More details
More details
Collection
Smoothy
Material
Aluminium, Stainless Steel
PriceThe price on the site is for informational purposes only.
Add to cart
-1+
100% original
All products are original and in accordance with specifications.

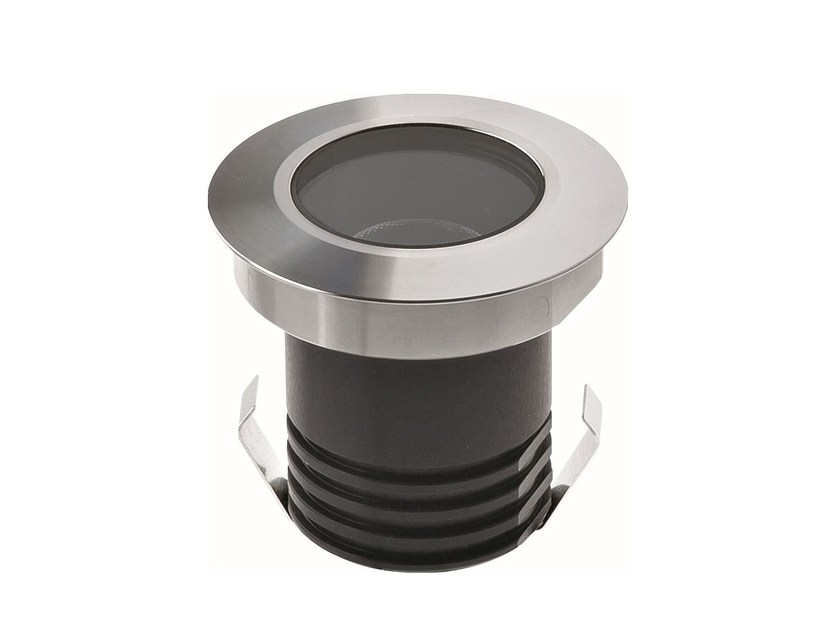

InformationSmoothy 1.6
Recessed for outdoor applications; recessed (ceiling, wall, floor); 2,5W, 3,5W; 24Vdc; Lumen output at source: 168 lm (3000K, 2.5W, CRI 80), 147 lm (3000K, 2.5W, CRI 90), 224 lm (3000K, 3.5W, CRI 80), 196 lm (3000K, 3.5W, CRI 90); Delivered lumen output: 141 lm (3000K, 22°, 2.5W, CRI 80), 125 lm (3000K, 22°, 2.5W, CRI 90), 188 lm (3000K, 22°, 3.5W, CRI 80), 165 lm (3000K, 22°, 3,5W, CRI 90); 1 power LED, 1/4 ANSI BIN, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 13°, 22°, 30°, sharp 35°, 48°, diffuse; CRI: 80, 90; body in anodized aluminium, trim in AISI 316L stainless steel, screen in tempered, transparent extra-clear glass (optics version), screen in sandblasted, tempered extra-clear glass (diffuse version); power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; Ingress protection: IP67; Impact resistance: IK07; Protection systems: IPS; Operating temperature: -20°C — +45°C; Maximum device temperature: 50°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: III; Weight: 270 g; Dimensions: Ø54x64 mm; Cutout dimensions: Ø48 mm; Volume of thermal heatsink: Ø180x110 mm; Accessories: WC4010 Outer casing, WE0700S Anti-glare screen, half transparent and half serigraphed black, WF8605 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8610 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8615 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8620 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8705 Neoprene cable - 5 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8710 Neoprene cable - 10 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8715 Neoprene cable - 15 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WF8720 Neoprene cable - 20 m H05RN-F 2x0,75/0,75 Ø6,3 mm - IPS, WG0501 Fixing springs Ø48mm, WH0100 Honeycomb louvre, WL0100 Suction cup; Energy efficiency class: A / A+ / A++
BrandL&L Luce&Light
