InformationTrevi 1.1

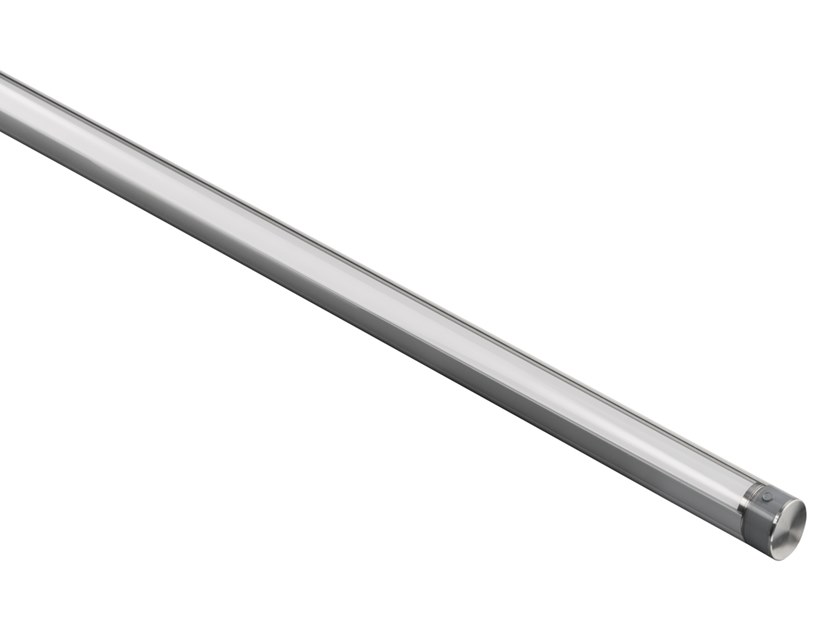

Linear profile for outdoor and underwater applications; surface mounted (ceiling, wall, floor); Power: optics version: 14W, diffuse version: 21W, RGB version: 24W; Power supply: 24Vdc; Lumen output at source: 1237 lm (3000K, optics version), 2268 lm (3000K, diffuse version), RGB: 1100 lm, R: 245 lm G: 703 lm B: 152 lm (diffuse version); Delivered lumen output: 1008 lm (3000K, 40°), 1138 lm (3000K, diffuse version), RGB: 786 lm, R: 175 lm G: 502 lm B: 109 lm (diffuse version); optics version: 12 power LEDs pitch 100, diffuse version: 162 mid power LEDs, RGB version: 90 low power LED full color; LED colour: 2700K, 3000K, 4000K, RGB; Optics: 40°, 65°, 20°x50°, diffuse; Body material: end caps in AISI 316L stainless steel; Screen material: diffuser in opal polycarbonate, installed flush with the surface, screen in transparent polycarbonate; Ingress protection: IP68; Impact resistance: IK10; available on request in 313mm-long, 5W (diffuse optics), 4W (with multiple optics) and 5W (RGB) versions; Protection systems: IPS; Appliance class: III; Weight: 800 g; Dimensions: Ø25x1208 mm
