L&L Luce&Light

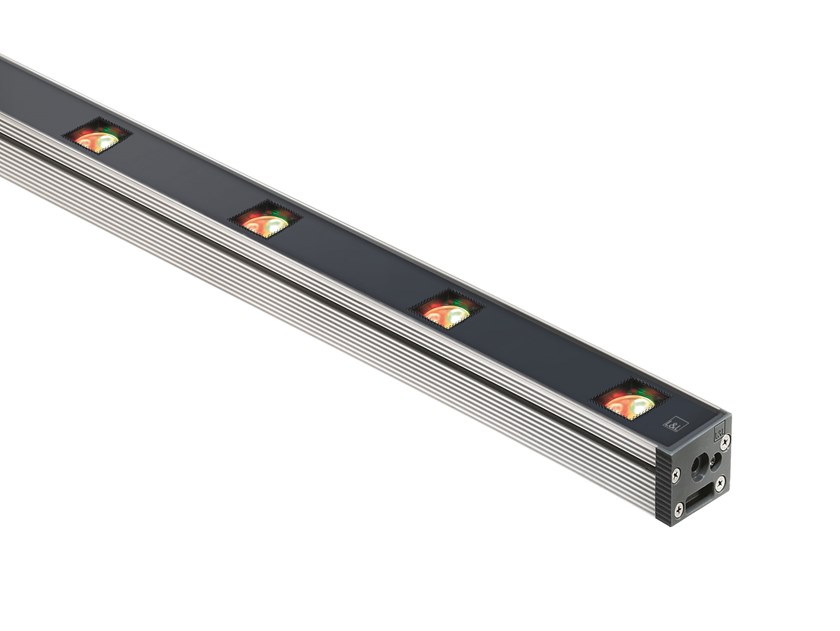

Neva 5.0
Linear profile for outdoor applications; surface mounted (ceiling, wall, loor) with brackets or recessed (ceil...
More details
More details
Collection
Neva
PriceThe price on the site is for informational purposes only.
Add to cart
-1+
100% original
All products are original and in accordance with specifications.
InformationNeva 5.0
Linear profile for outdoor applications; surface mounted (ceiling, wall, loor) with brackets or recessed (ceiling, floor, wall) with outer casing; 20W; 24Vdc; Lumen output at source: 1740 lm, R: 290 lm G: 870 lm B: 580 lm; Delivered lumen output: 648 lm, R: 108 lm G: 324 lm B: 216 lm (26°); 6 LED RGB groups pitch 120 mm; LED colour: RGB; Optics: 15°, 26°, 30°, 24°x46°; body in anodized aluminium, screen in tempered and serigraphed glass; power supply unit not included; includes 1,5 m neoprene cable, 05RN-F 4x0,50 Ø5,8 mm; DMX version: includes two 1,5 m neoprene cables, H05RN-F 2x0,75 Ø6,3 mm and 05RN-F 4x0,50 Ø5,8 mm; Control system: DMX, on / off; Ingress protection: IP67; Impact resistance: IK06; available on request in 316-mm version with 10W power; Protection systems: IPS, NTC; Operating temperature: -20°C — +45°C; Maximum device temperature: 45°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: III; Weight: 1250 g; Dimensions: 677x37x29mm; Accessories: WB6520 Stainless steel painted black anti-glare shield - 673 mm, WC6520 Aluminium outer casing - 682 mm, WC6720 Aluminium outer casing for plasterboard - 682 mm, WF7205 Neoprene cable - 5 m 05RN-F 4x0,50 Ø5,8 mm, WF7210 Neoprene cable - 10 m 05RN-F 4x0,50 Ø5,8 mm, WF7215 Neoprene cable - 15 m 05RN-F 4x0,50 Ø5,8 mm, WF7220 Neoprene cable - 20 m 05RN-F 4x0,50 Ø5,8 mm, WH6020 Honeycomb louvre , WM0601 Pair of brackets h 75 mm, WM0602 Pair of brackets h 140 mm, WN6001 Anti-fall kit, WN6004 Extractors pair for outer casings, WN6005 Alignment kit for outer casing; Energy efficiency class: A / A+ / A++
BrandL&L Luce&Light
