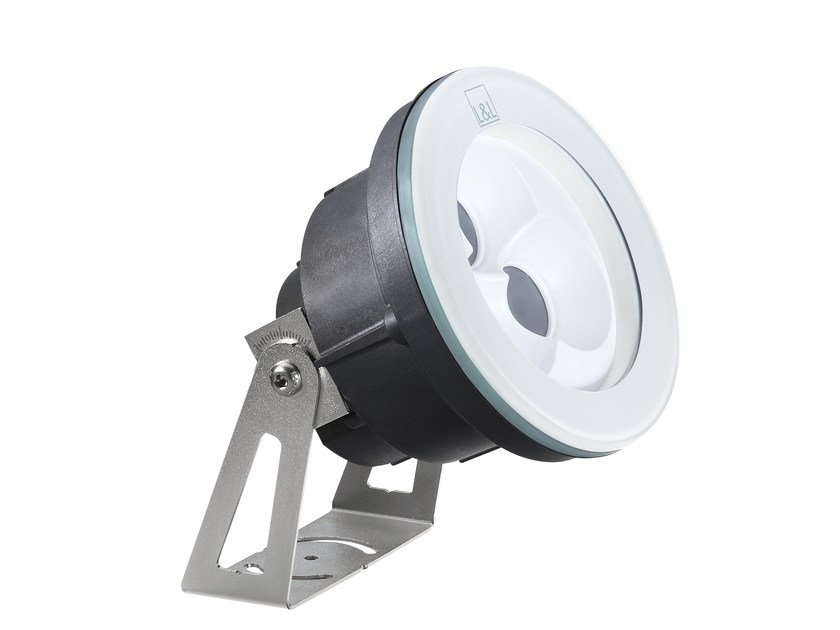

InformationMoby P 2.1

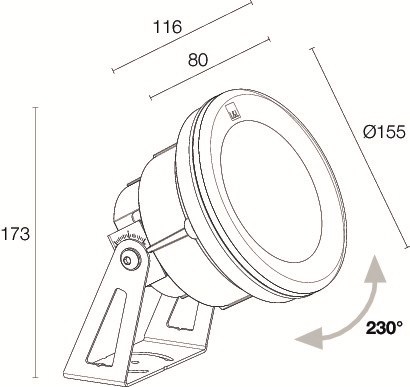

Projector for underwater applications (not suitable for underwater applications in salt water, only suitable for underwater applications); surface mounted (wall, floor); Power: 20W; Power supply: 24Vdc; Lumen output at source: 1522 lm (3000K), RGBW: 884 lm, R: 138 lm G: 259 lm B: 69 lm W: 418 lm (4000K), cyan: 782 lm; Delivered lumen output: 1078 lm (3000K, 34°), RGBW: 626 lm, R: 97 lm, G: 184 lm, B: 48 lm, W: 297 lm (4000K, 34°), cyan: 552 lm (34°); 3 power LEDs groups, RGBW: 3 RGBW LEDs groups, Cyan: 3 Cyan LEDs groups; LED colour: 2700K, 3000K, 4000K, RGBW, shades of cyan; Optics: 22°, 34°, 62°, 31°x64°; Material: body in thermally conductive plastic, glass cover, bracket in AISI 316L stainless steel; power supply unit not included; includes 5 m neoprene cable, H05RN-F 2x1,00 Ø6.8 mm; RGBW-cyan: includes 5 m FEP+RUB cable (equivalent to H05RN-F cable), 6x0,50 Ø6.3 mm; Ingress protection: IP68; Impact resistance: IK10; Protection systems: IPS, NTC; Operating temperature: 0°C — +45°C (installation underwater); Maximum device temperature: 40°C (Ta 25°C); Weight: 2470 g; Dimensions: Ø155x173 mm; Accessories: WH0402 Honeycomb louvre

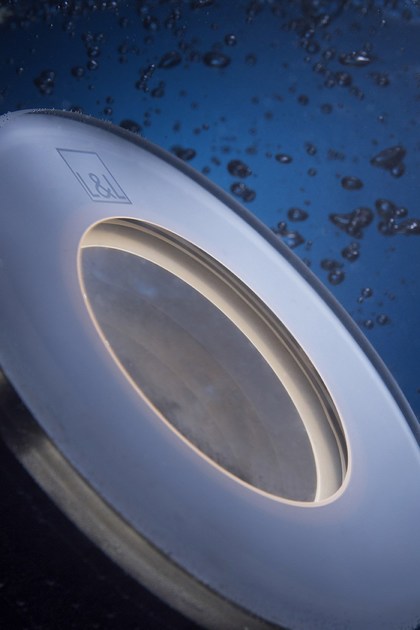

Moby is an LED lighting fixture from L&L Luce&Light that reinvents permanent underwater lighting in an entirely original way. The product comes in three sizes, three powers (9W, 20W, 30W) and two application categories: IP68-rated recessed spotlights and projectors, for fountains and swimming pools, at depths of up to 10 m. Thanks to the innovative version with a vitrified, serigraphic glass trim and up to 16-mm of thickness, this device is extremely resistant to knocks, and perfect for installations in salt water. Moby builds 22°, 34°, 62°, 31°x64° optics.
Moby’s other feature is the opportunity it provides to play with light in the different shades of cyan: blending the LED colors of green and blue to produce lighting that passes from turquoise to azure to aquamarine. Use it to create chromotherapy or scenography effects to suit the needs of your project. It is also available in the usual 2700K, 3000K and 4000K white light, and in RGBW, to give the water iridescent tones, or to accent statues or decorative elements.
Moby is the ideal solution for spas and wellness centers also because of the materials used in its body. Technopolymer and polypropylene dissipate heat very efficiently while protecting the device from moisture and from the highly corrosive substances found in the water: chlorine (in swimming pools), Sulphur (in spas), and sodium chloride and other salts (in the sea).
The recessed version can also be installed in swimming pools with liners. In this case, a kit is available that consists of an accessory to add to the outer casing.
The variety of fixture versions available, the quality and high resistance of the materials used, and the different LED colors mean that Moby and Moby P are very versatile solutions, ideal for sports centers, private residences and accommodation facilities.
