L&L Luce&Light
Pasito 1.0
Step light for outdoor applications; recessed (wall); 10W, 8,5W; 230Vac, 24Vdc; Lumen output at source: 851 lm...
More details
More details
Collection
Pasito
Material
Aluminium
PriceThe price on the site is for informational purposes only.
Add to cart
-1+
100% original
All products are original and in accordance with specifications.

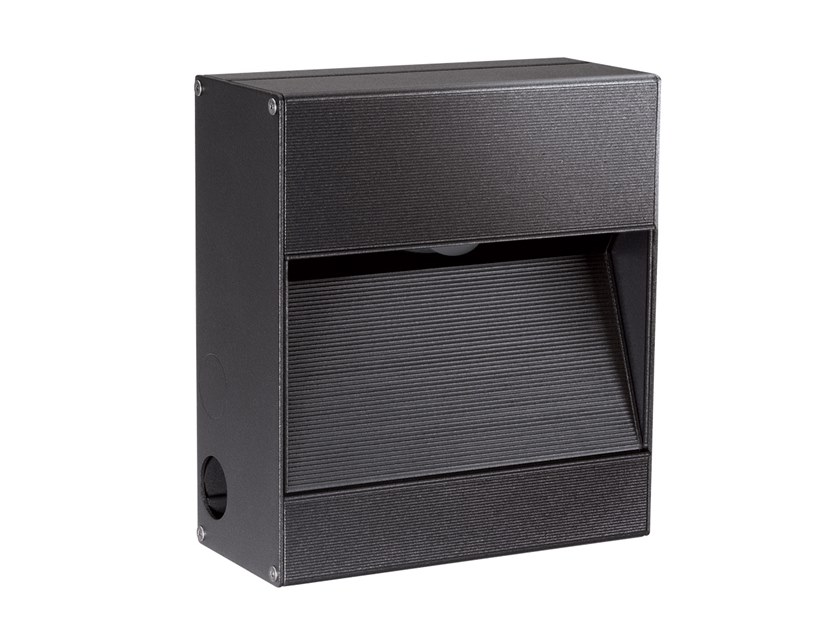

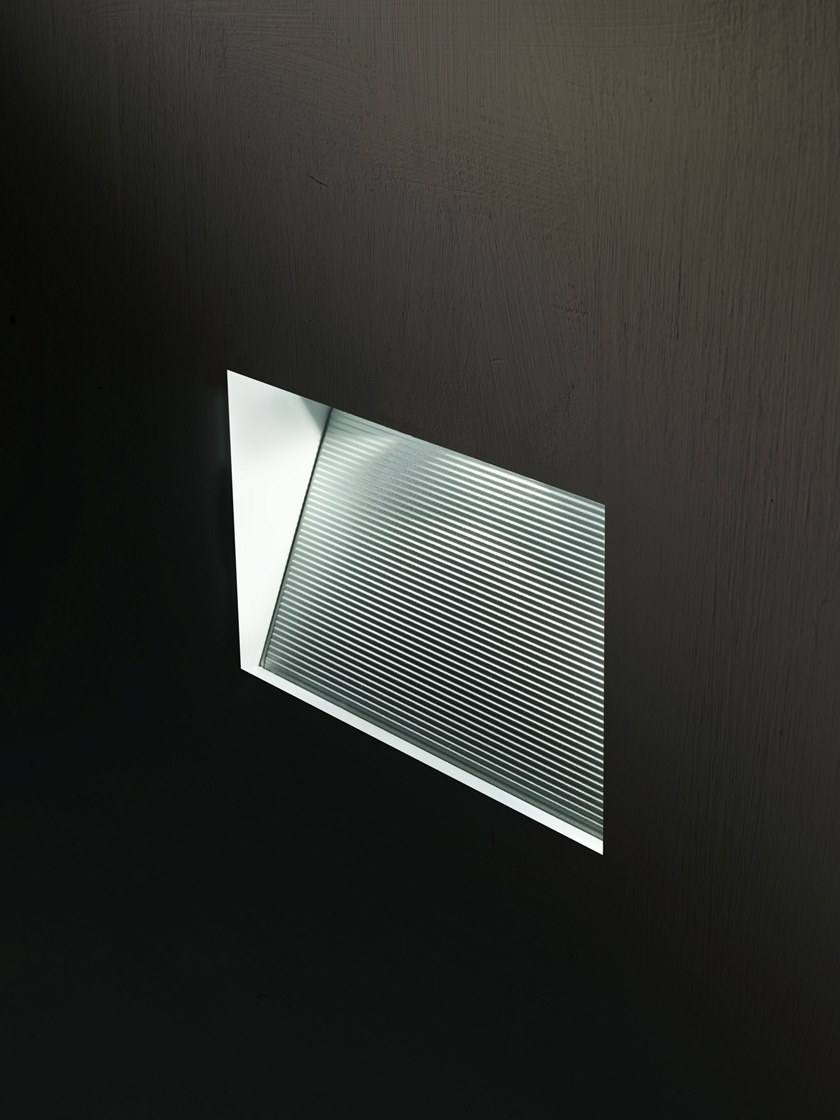

InformationPasito 1.0
Step light for outdoor applications; recessed (wall); 10W, 8,5W; 230Vac, 24Vdc; Lumen output at source: 851 lm (3000K, CRI 80); 788 lm (3000K, CRI 90); Delivered lumen output: 390 lm (3000K, 150°x90°, CRI 80); 361 lm (3000K, 150°x90°, CRI 90); 320 lm (3000K, 60°, CRI 80); 296 lm (3000K, 60°, CRI 90); 1 power LED High Intensity; LED colour: 2700K, 3000K, 4000K; Optics: 60°, asymmetrical 150°x90°; CRI: 80, 90; body in aluminium; Finishes: anthracite, grey, white, cor-ten; 230Vac: power supply unit included, 24Vdc: power supply unit not included; 230Vac version: includes 0,20 m neoprene cable, H05RN-F 2x1,0 Ø7 mm; 24Vdc version: includes 0,30 m neoprene cable, H05RN-F 2x0,35/0,75 Ø6,3 mm; Ingress protection: IP65; Impact resistance: IK06; Protection systems: IPS; Operating temperature: -20°C — +45°C; Maximum device temperature: 50°C (Ta 25°C); Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: II, III; Weight: 520 g; Dimensions: 143x67x161 mm; Cutout dimensions: 143x161 mm; Accessories: WC1410E Outer casing - white, WC1410F Outer casing - grey, WC1410H Outer casing - anthracite, WC1410T Outer casing - cor-ten; Energy efficiency class: A / A+ / A++
Manufacture year: 2018
Manufacture year: 2018
BrandL&L Luce&Light
