InformationGinko 2.0

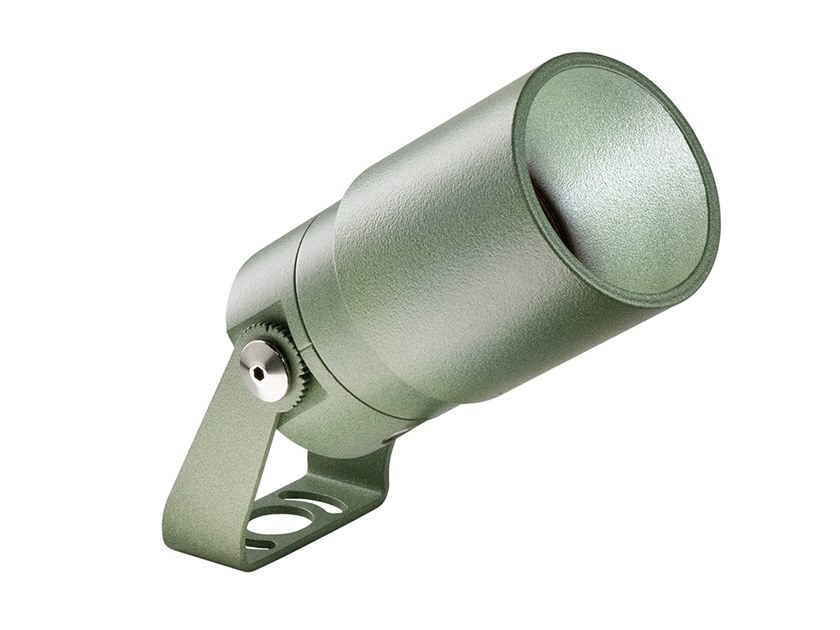

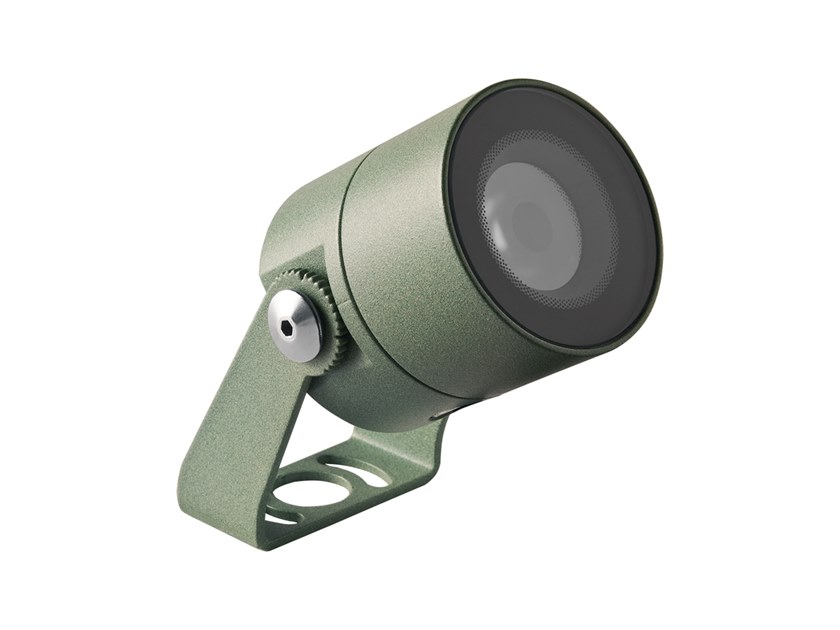

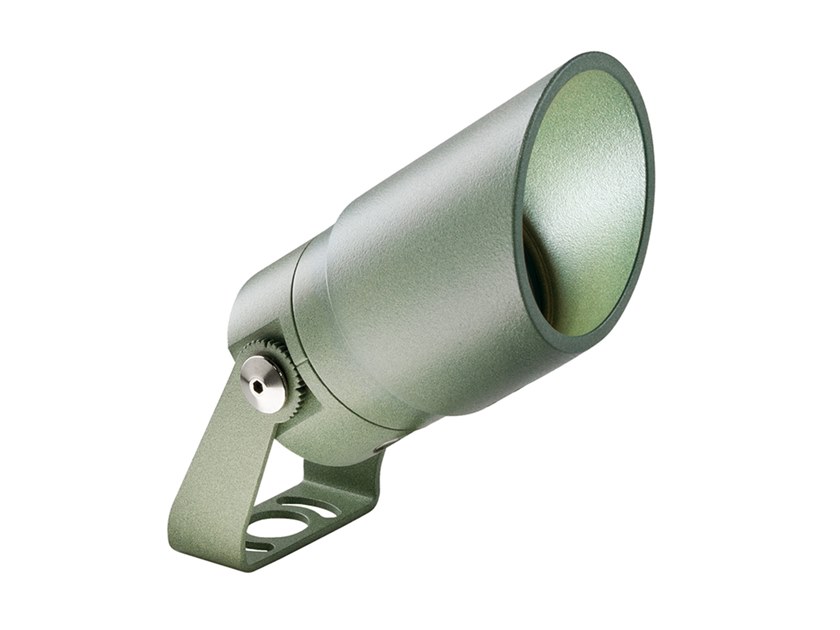

Projector for outdoor applications; surface mounted (ceiling, wall, ground, spike); 3,5W (5° optics), 5W, 7W; 24Vdc; Lumen output at source: 488 lm (3000K, 5W, CRI 80), 452 lm (3000K, 5W, CRI 90), 657 lm (3000K, 7W, CRI 80), 608 lm (3000K, 7W, CRI 90); Delivered lumen output: 352 lm (3000K, 34°, 5W, CRI 80), 284 lm (3000K, 34°, 5W, CRI 90), 463 lm (3000K, 34°, 7W, CRI 80), 374 lm (3000K, 34°, 7W, CRI 90); 1 power LED High Intensity; 1 power LED (5° optics), 1/4 ANSI BIN (5° optics), 3 step MacAdam, 50000h L90 B10 (Ta 25°C); LED colour: 2700K, 3000K, 4000K; Optics: 5°, 8°, 11°, 17°, sharp 21°, 34°, 45°, 47°, sharp 61°, 68°, 13°x52°, 54°x15°; CRI: 80, 90; body in AISI 316L stainless steel or anticorodal aluminium, AISI 316L stainless steel bracket, screen in tempered, transparent extra-clear glass; Finishes: black anodized, anthracite, jasper green, cor-ten, stainless steel, grey, white; power supply unit not included; includes 1,5 m neoprene cable, H05RN-F 2x0,75/0,75 Ø6,3 mm; Ingress protection: IP66; Impact resistance: IK07; Protection systems: IPS, PID; Operating temperature: -20°C — +45°C; Maximum device temperature: 55°C (Ta 25°C); Glow wire test: 960°; Photobiological safety: risk group 1 according to EN6 2471:2006; Appliance class: III; Weight: 380 g; Dimensions: Ø54x58 mm.
Manufacture year: 2018
