InformationGENIUSQUARE BRASS

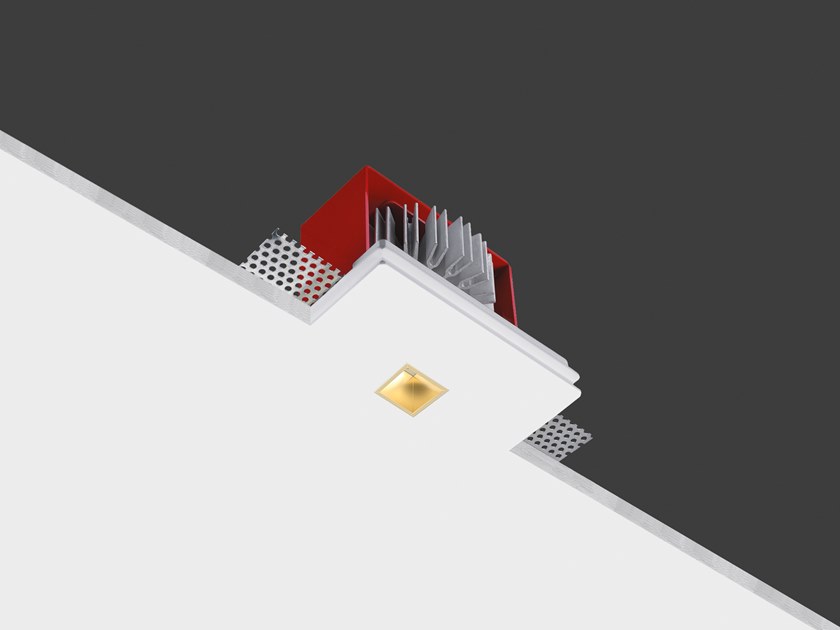

Geniusquare Brass is a totally recessed luminaire, with body made in AirCoral®, ideal for indoor ceiling-mounted installations, both on drywall and bricks.
In this version, which retains all the features of the Genius line, the backing on the light emission hole is fitted with a brass insert which helps to spread light, generating a warmer tone and variegated shades suitable for relaxed ambience situations.
The electrical part can be removed through the light hole, thanks to a push-pull mechanism making it easy to pull the LED light source out and replace it.
The only visible aperture is the 20 x 20 mm (0.79” x 0.79”) outlet, with no need for any inspection hatch, nor for invasive maintenance operations.
AirCoral® body
IP20 protection grade
Light inclination: 90°

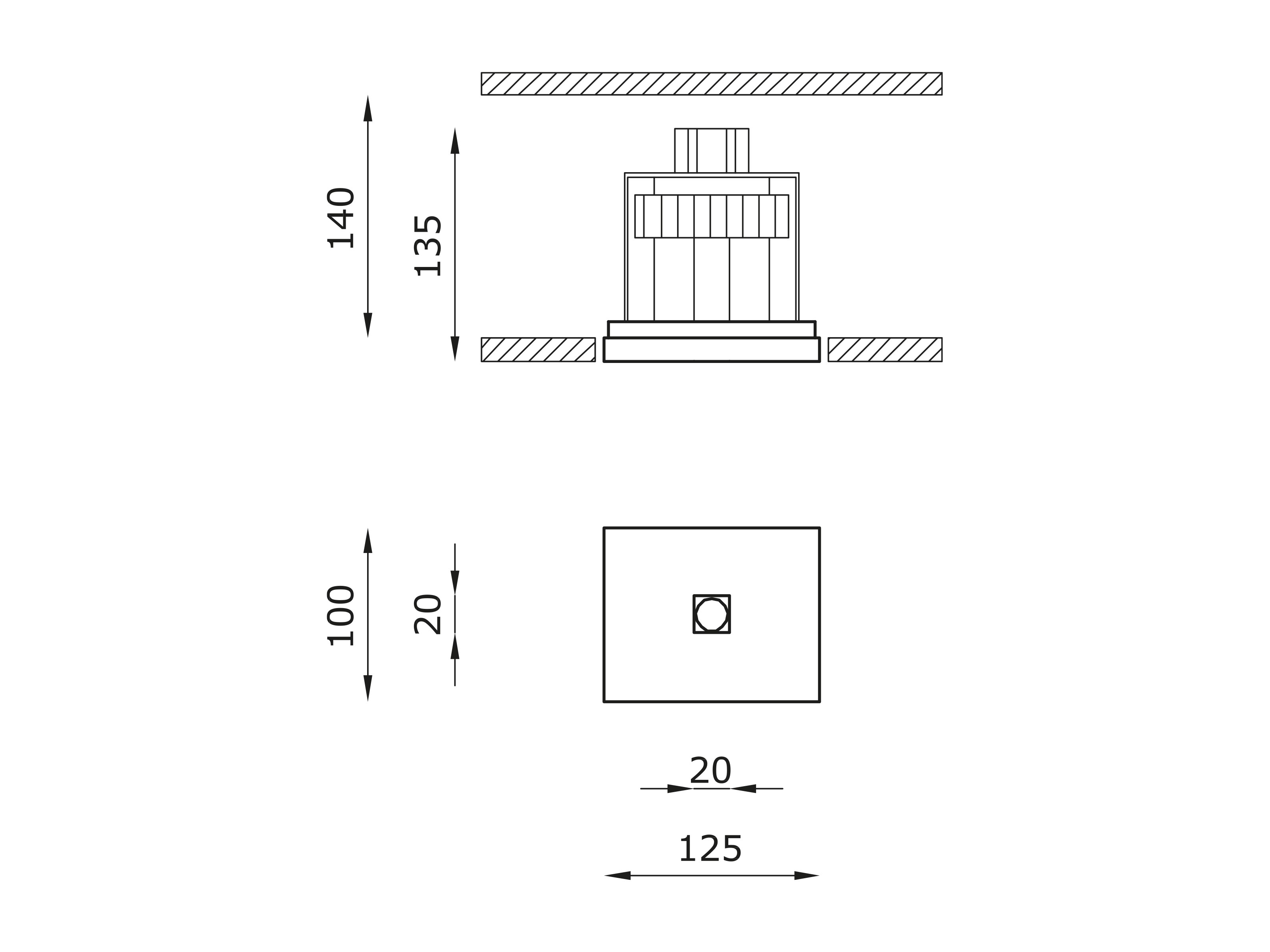

Dimensions 135 x 100 x 135 mm (5.31” x 3.94” x 5.31”)
Light emission hole 20 x 20 mm (0.79” x 0.79”)
COB professional LED source - LED 8.5W 700mA 130 lm/W
LED colour temperature: 3000 K (on demand 2700 K - 4000 K)
New products and new forms of light. The perfect integration between technology and design leads to the creation of a line whose ways of expression are concretely different not just in terms of aesthetics, but also for what concerns function and technique.
AirCoral®, Durcoral® e CoralWaterOut®, the exclusive Buzzi & Buzzi’s materials, live in the Recessed, Surface and Outdoor products for the benefit of a line which revolutionises the rules of traditional illumination, perfectly embodying the concept of “architectural light”.
Manufacture year: 2019
