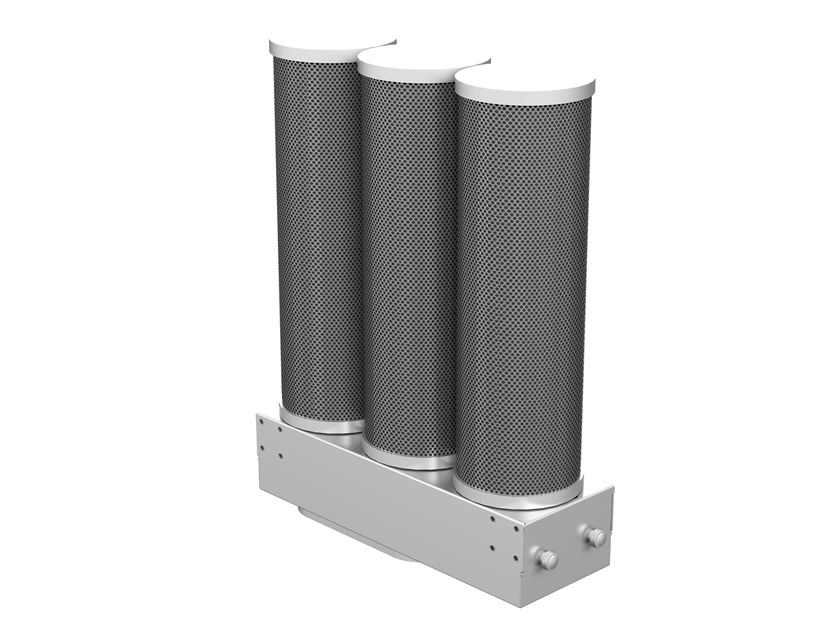

InformationULB3
BORA system products complement the BORA Professional, Classic and Basic ranges to create a harmonious complete system for recirculation and exhaust air solutions.
The perfectly aligned components of the BORA system offer you optimum performance and 100 % functional guarantee. All system components come from BORA – whether the cooktop extractors, cooktops, fans, filters, ducts or wall sleeves.
The BORA system – everything from a single source!
Technical data
Activated charcoal granulate volume 8.5 kg
Filter material Activated charcoal granulate
Casing material Galvanised sheet steel
Dimensions (WxDxH) 465 x 560 x 150 mm
Dimensions (flat duct connection) 245 x 89 x 30 mm
Weight (excluding accessories/packaging) Approx. 11.5 kg
Service life 400 h / 2 years
duct connection BORA Ecotube
Product description
· Odour filter for cleaning the air in domestic kitchens
· Diverse installation options
· Duct connection shallow 245 x 89 mm
· Access for maintenance must be considered during planning
· Clearance of at least 2 cm is required to replace the filter cartridges
· Clearance of at least 18 cm is required sideways to replace the filter
· Easy filter change
· Ensure minimum return flow aperture of 500 cm² (e.g. shortened plinth plate or slatted plinth)
Dimensions: (WxDxH) 465 x 560 x 150 mm
The perfectly aligned components of the BORA system offer you optimum performance and 100 % functional guarantee. All system components come from BORA – whether the cooktop extractors, cooktops, fans, filters, ducts or wall sleeves.
The BORA system – everything from a single source!
Technical data
Activated charcoal granulate volume 8.5 kg
Filter material Activated charcoal granulate
Casing material Galvanised sheet steel
Dimensions (WxDxH) 465 x 560 x 150 mm
Dimensions (flat duct connection) 245 x 89 x 30 mm
Weight (excluding accessories/packaging) Approx. 11.5 kg
Service life 400 h / 2 years
duct connection BORA Ecotube
Product description
· Odour filter for cleaning the air in domestic kitchens
· Diverse installation options
· Duct connection shallow 245 x 89 mm
· Access for maintenance must be considered during planning
· Clearance of at least 2 cm is required to replace the filter cartridges
· Clearance of at least 18 cm is required sideways to replace the filter
· Easy filter change
· Ensure minimum return flow aperture of 500 cm² (e.g. shortened plinth plate or slatted plinth)
Dimensions: (WxDxH) 465 x 560 x 150 mm
